2 channel solid state relay up to 120A
Home Products Solid State Relays (AC Switching)Multi-output solid state relays2 channel solid state relay up to 120A
Product Details

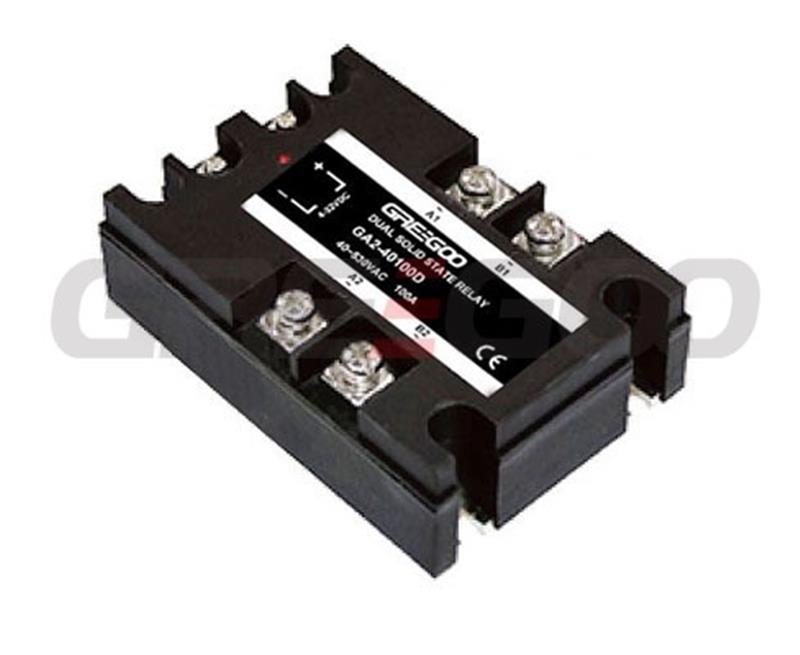

2 channel solid state relay up to 120A
| Model | Load voltage | Load current | Insulation voltage | Control voltage | On/off time | Status |
| GA2-4060D | 40-530VAC | 60A | ≥2500VAC | 4-32VDC | 10MS | LED |
| GA2-4080D | 40-530VAC | 80A | ≥2500VAC | 4-32VDC | 10MS | LED |
| GA2-40100D | 40-530VAC | 100A | ≥2500VAC | 4-32VDC | 10MS | LED |
| GA2-40120D | 40-530VAC | 120A | ≥2500VAC | 4-32VDC | 10MS | LED |
Dimensions: 105x72.5x31.5mm
Installation size:48x93mm @ M4
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
