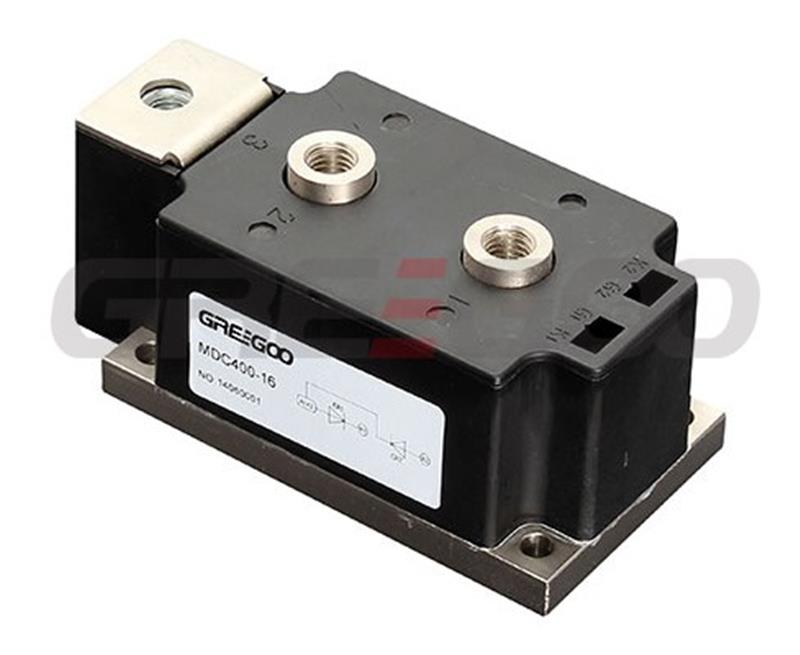

Dual diode module 400A 500A
Home Products Thyristor Diode ModuleDual Diode ModuleDual diode module 400A 500A
Product Details
Dual diode module 400A 500A
| Symbol | Meaning |
| M | Module |
| D | Rectifier diode |
| C | C - in series, A - common anode, K - common cathode, X - anti-parallel |
| 26 | Average current |
| 12 | Voltage code: code x 100 = VRRM |
| Eg. | MDC26-12, Dual diode module, in series connection, 26A, 1600V. |

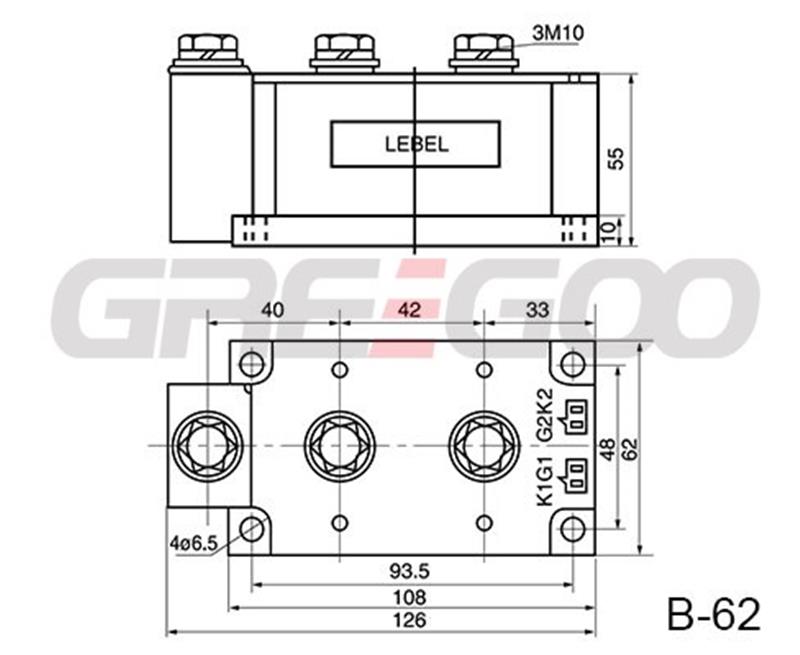

| Model No. | IF(AV) | VRRM | Package |
| MDC400-06 | 400A | 600V | B60 |
| MDC400-10 | 400A | 1000V | B60 |
| MDC400-12 | 400A | 1200V | B60 |
| MDC400-16 | 400A | 1600V | B60 |
| MDC400-18 | 400A | 1800V | B60 |

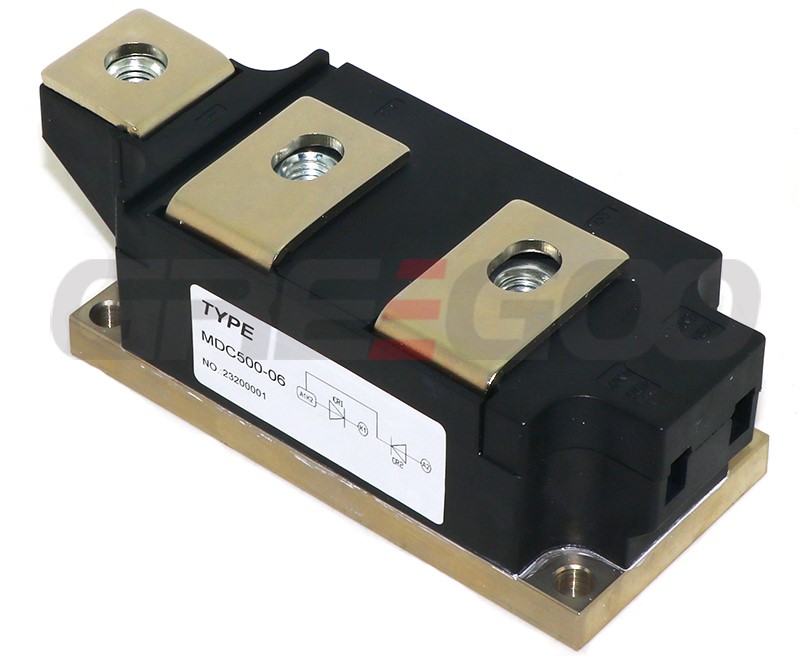

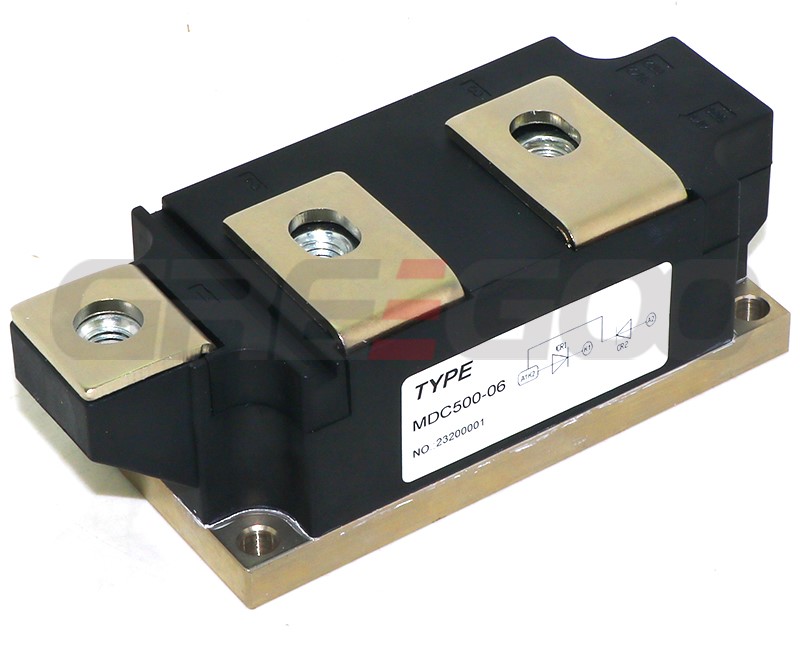

| MDC500-06 | 500A | 600V | B60 |
| MDC500-10 | 500A | 1000V | B60 |
| MDC500-12 | 500A | 1200V | B60 |

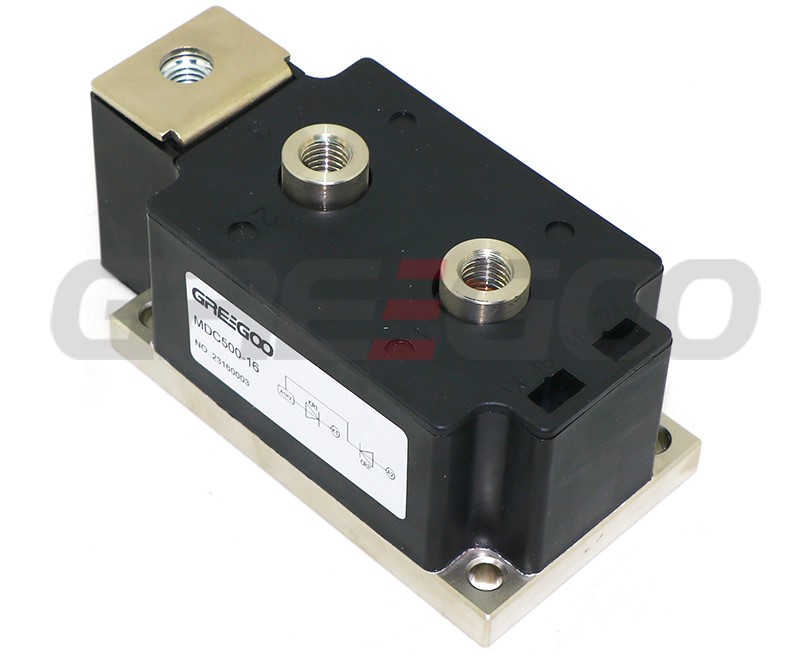

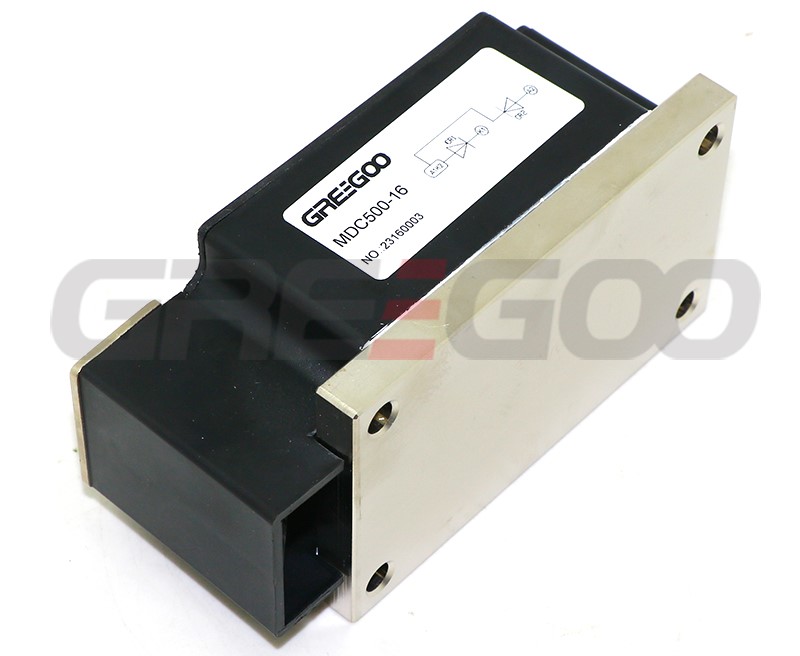

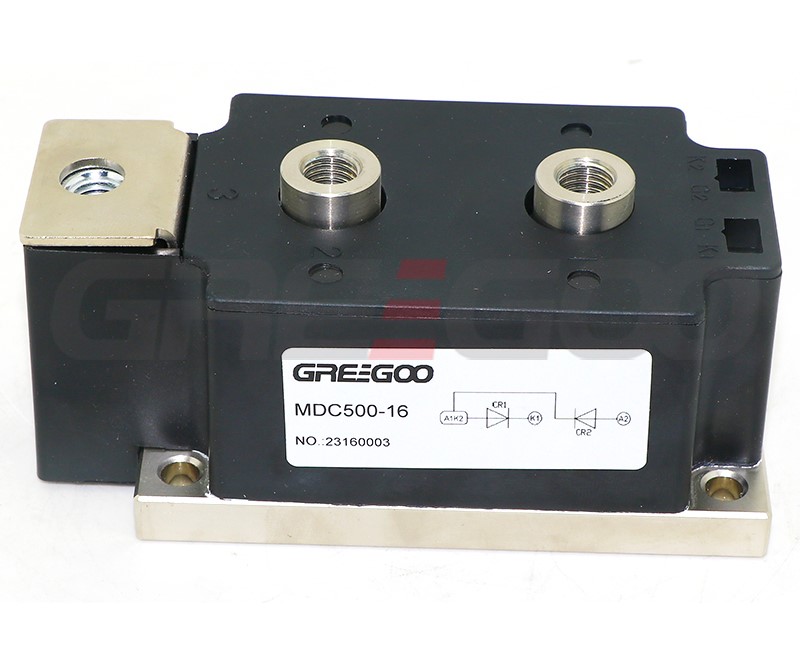

| MDC500-16 | 500A | 1600V | B60 |
| MDC500-18 | 500A | 1800V | B60 |
| MDK400-06 | 400A | 600V | B60 |
| MDK400-10 | 400A | 1000V | B60 |
| MDK400-12 | 400A | 1200V | B60 |
| MDK400-16 | 400A | 1600V | B60 |
| MDK400-18 | 400A | 1800V | B60 |
| MDK500-06 | 500A | 600V | B60 |
| MDK500-10 | 500A | 1000V | B60 |
| MDK500-12 | 500A | 1200V | B60 |
| MDK500-16 | 500A | 1600V | B60 |
| MDK500-18 | 500A | 1800V | B60 |
| MDA400-06 | 400A | 600V | B60 |
| MDA400-10 | 400A | 1000V | B60 |
| MDA400-12 | 400A | 1200V | B60 |
| MDA400-16 | 400A | 1600V | B60 |
| MDA400-18 | 400A | 1800V | B60 |
| MDA500-06 | 500A | 600V | B60 |
| MDA500-10 | 500A | 1000V | B60 |
| MDA500-12 | 500A | 1200V | B60 |
| MDA500-16 | 500A | 1600V | B60 |
| MDA500-18 | 500A | 1800V | B60 |
| MDX400-06 | 400A | 600V | B60 |
| MDX400-10 | 400A | 1000V | B60 |
| MDX400-12 | 400A | 1200V | B60 |
| MDX400-16 | 400A | 1600V | B60 |
| MDX400-18 | 400A | 1800V | B60 |
| MDX500-06 | 500A | 600V | B60 |
| MDX500-10 | 500A | 1000V | B60 |
| MDX500-12 | 500A | 1200V | B60 |
| MDX500-16 | 500A | 1600V | B60 |
| MDX500-18 | 500A | 1800V | B60 |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
