DC Pulse Width Modulation Type Solid State Regulator TZ03C TZ04C

The weak current part and the strong current part are isolated by optoelectronics and transformers.

Transistor PWM output, with a wide range of adjustable output power.
Contactless output, no sparks or mechanical wear during operation, resulting in a longer lifespan.
Built-in overvoltage absorption protection to prevent transient high voltage from breaking down the solid-state switch.
Solid encapsulation, shockproof, corrosion-resistant, safe and reliable during operation.
Mainly used for power regulation of high-power DC appliances in new energy vehicles, such as DC heater power regulation, lighting dimming and electric vehicle speed control.



Specification
Parameter TZ03C TZ04C
Maximum Load Voltage 5-60V, 6-120V, 10-360V, 20-720V 5-60V, 6-120V, 10-360V, 20-720V
Maximum Output Current 600-2000 A 600-2000 A
Control Method

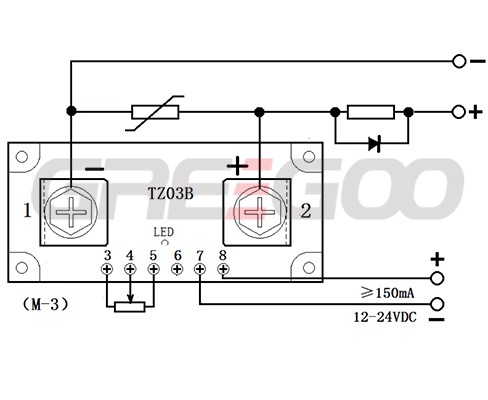

Potentiometer Adjustment: 30K/2W

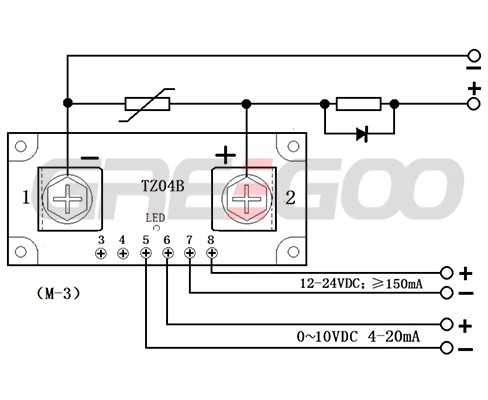

0-5VDC, 0-10VDC, 4-20mA
Control Power 12VDC (≤40mA) or 24VDC (≤50mA) 12VDC (≤40mA) or 24VDC (≤50mA)
Off-state Voltage 100, 200, 600, 1200 VDC 100, 200, 600, 1200 VDC
Output Switching Time 0-3 ms 0-3 ms
Isolation Voltage ≥ 2000 V ≥ 2000 V
Insulation Voltage ≥ 2500 V ≥ 2500 V
Ambient Temperature -30 to 75 ℃ -30 to 75 ℃
Cooling Conditions With heatsink and fan cooling With heatsink and fan cooling
Load Current Safety Factor Inductive Load: 3-4 times, Resistive Load: 2-3 times Inductive Load: 3-4 times, Resistive Load: 2-3 times
Selection tips

The data in the parameter table is measured at room temperature (25°C). In actual operation, a margin should be allowed. For resistive loads: select the current at 3-4 times the load current and the voltage at 2-3 times. For inductive loads: select the current at 4-6 times and the voltage at 4-5 times.



When the ambient temperature is high or the cooling conditions are poor, the current rating should be increased and the size of the heatsink should be enlarged. To prevent overcurrent or short circuit in the load during use, a fast circuit breaker or fast fuse should be added to the main circuit.



For inductive loads, be sure to connect a freewheeling diode across the load or connect a varistor and RC snubber circuit at the output to prevent transistor damage due to overvoltage. The varistor (MOV) should be selected at 1-2 times the power supply voltage, and the RC value should be selected according to the load power.



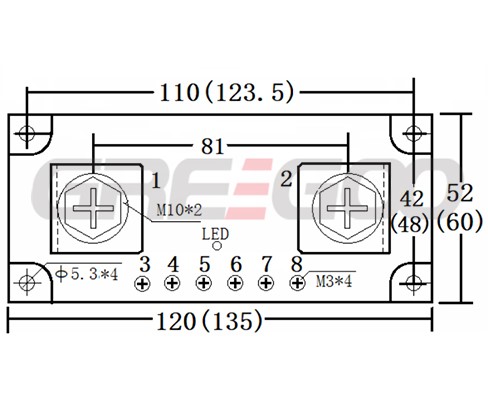

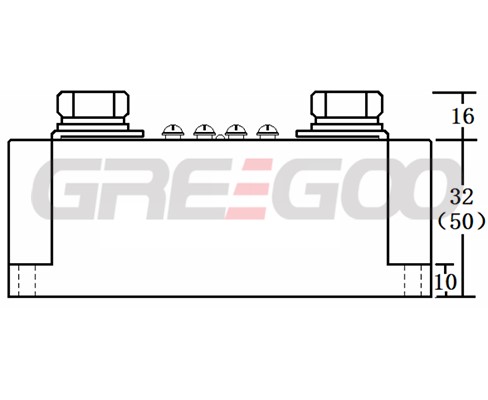

During installation, the contact surface between the heatsink and this product must be flat and smooth, and a layer of thermal grease should be applied to its surface. Finally, tighten the screws with flat washers and spring washers symmetrically to fix them.
