CMV16 Miniature Snap Action Switch
Home Products Switch & SwitchgearLimit SwitchCMV16 Miniature Snap Action Switch
Product Details

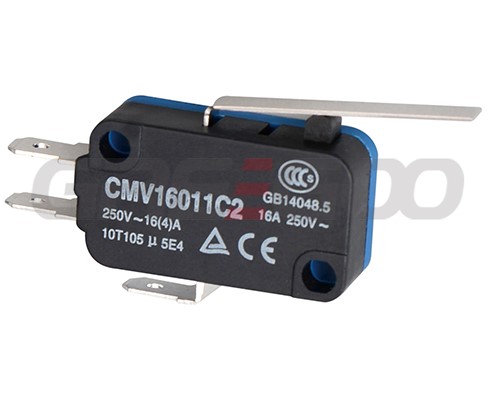

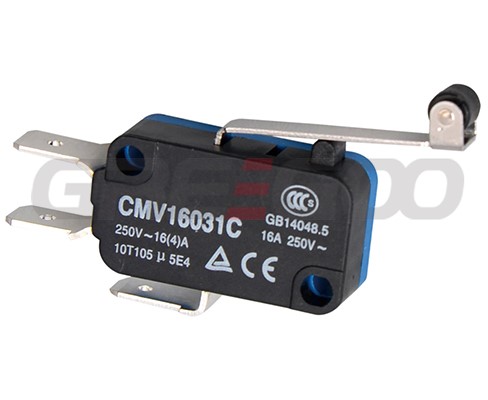

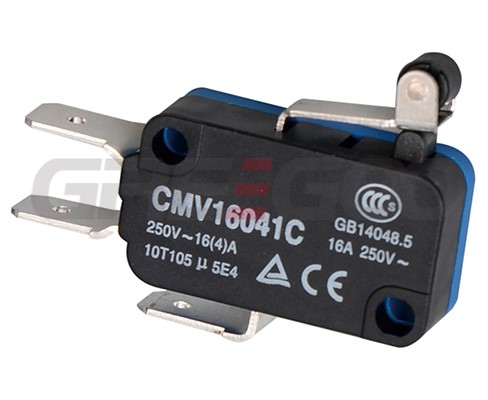

CMV16 Miniature Snap Action Switch
|
Models |
CMV16001C2 CMV16001C |
CMV16011C2 CMV16011C |
CMV16021C2 CMV16021C |
CMV16031C2 CMV16031C |
CMV16041C2 CMV16041C |
CMV16051C2 CMV16051C |
CMV16061C2 CMV16061C |
|
OF(Max.) |
2.4N |
1.23N |
2.4N |
1.23N |
2.7N |
0.69N |
1.2N |
|
RF(Min.) |
0.49N |
0.14N |
0.49N |
0.14N |
0.49N |
0.06N |
0.14N |
|
PT(Max.) |
1.2mm |
4.0mm |
1.6mm |
4.0mm |
1.5mm |
9.0mm |
4.0mm |
|
OT(Min.) |
1.0mm |
1.6mm |
0.8mm |
1.6mm |
0.8mm |
2.0mm |
1.5mm |
|
MD(Max.) |
0.4mm |
1.5mm |
0.6mm |
1.5mm |
0.6mm |
2.8mm |
1.5mm |
|
OP(mm.) |
14.7±0.4mm |
15.2±1.2mm |
15.2±0.5mm |
20.7±1.2mm |
20.7±0.6mm |
15.2±3mm |
18.7±1.2mm |
