Product Details

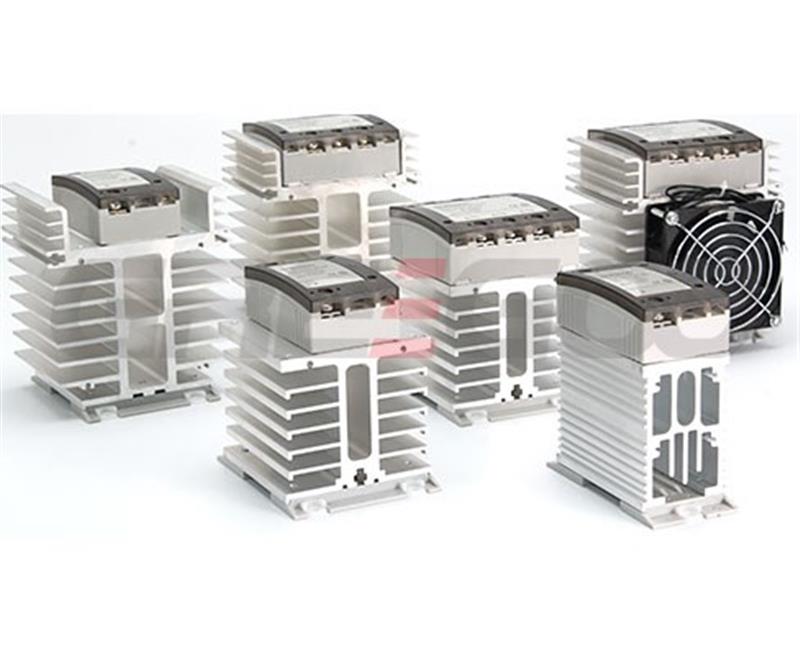

Air cooled solid state relay assemblies

Air cooled solid state relay assemblies

Model No.	Control Voltage	Load Voltage	Rated Current	Heatsink	Dimensions
GA6-1/032F-3810Z	4-32VDC	40-440VAC	10A	HH-051	100x24x107
GA6-1/032F-3815Z	4-32VDC	40-440VAC	15A	HH-051	100x24x107
GA6-1/032F-3820Z	4-32VDC	40-440VAC	20A	HH-052	100X48X107
GA6-1/032F-3825Z	4-32VDC	40-440VAC	25A	HH-052	100X48X107
GA6-1/032F-3830Z	4-32VDC	40-440VAC	30A	HH-052	100X48X107
GA6-1/032F-3840Z	4-32VDC	40-440VAC	40A	HH-055	100X80X107
GA6-1/032F-3860Z	4-32VDC	40-440VAC	60A	HH-057	100X110X107
GA6-1/032F-3880Z	4-32VDC	40-440VAC	80A	HH-057	100X110X107

GA6-1/250F-3820Z	90-250VAC	40-440VAC	20A	HH-052	100X48X107
GA6-1/250F-3825Z	90-250VAC	40-440VAC	25A	HH-052	100X48X107
GA6-1/250F-3830Z	90-250VAC	40-440VAC	30A	HH-052	100X48X107
GA6-1/250F-3840Z	90-250VAC	40-440VAC	40A	HH-055	100X80X107
GA6-1/250F-3860Z	90-250VAC	40-440VAC	60A	HH-057	100X110X107
GA6-1/250F-3880Z	90-250VAC	40-440VAC	80A	HH-057	100X110X107

GA6-1/032F-6060Z	4-32VDC	60-600VAC	60A	HH-057	100X110X107
GA6-1/032F-6080Z	4-32VDC	60-600VAC	80A	HH-057	100X110X107
GA6-1/250F-6060Z	90-250VAC	60-600VAC	60A	HH-057	100X110X107
GA6-1/250F-6080Z	90-250VAC	60-600VAC	80A	HH-057	100X110X107

Download

GA6 series solid state relays with heatsink (PDF)GA6 series solid state relays with heatsink (three phase) (PDF)
