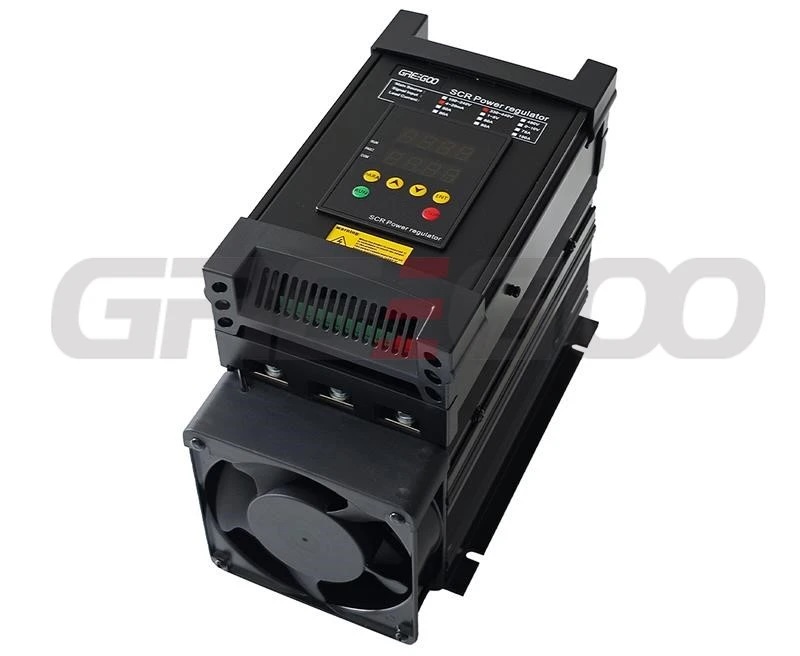

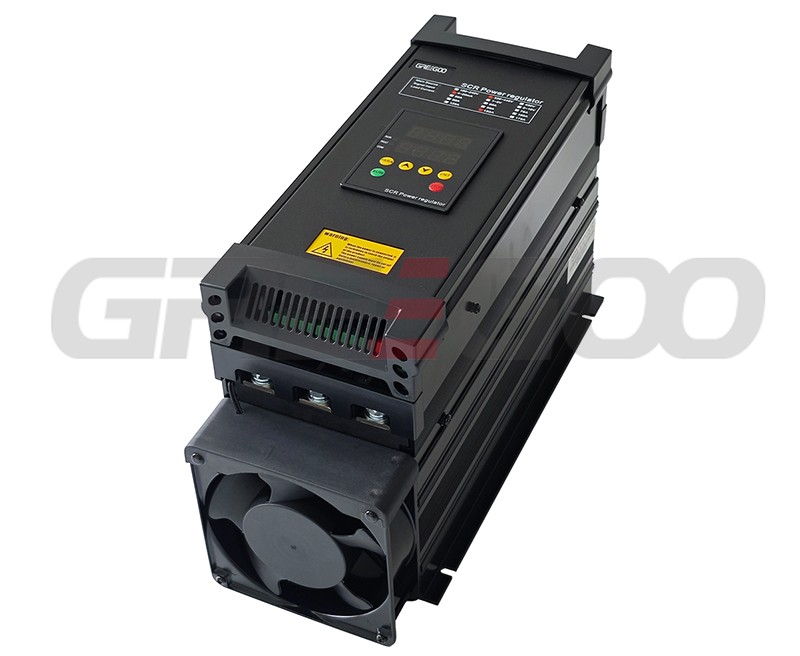

Three phase SCR Power Regulator HGW6

Home Products SCR Power ControllerThree Phase SCR ControllerThree phase SCR Power Regulator HGW6

HGW6 three phase scr power regulator 30A to 200A, 110-220V/330-440VAC

Three phase dual digital type, 30A to 200A, 110-220V/330-440VAC

Product Features

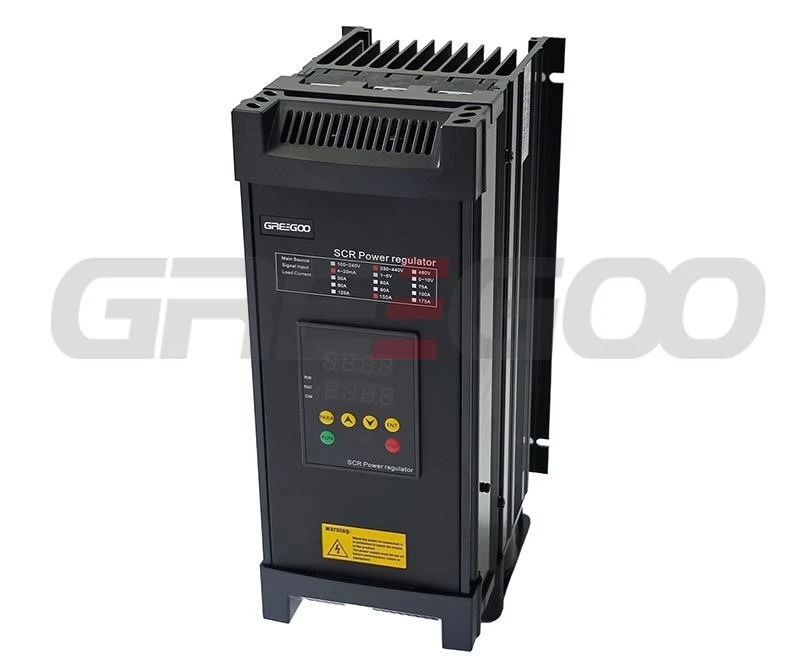

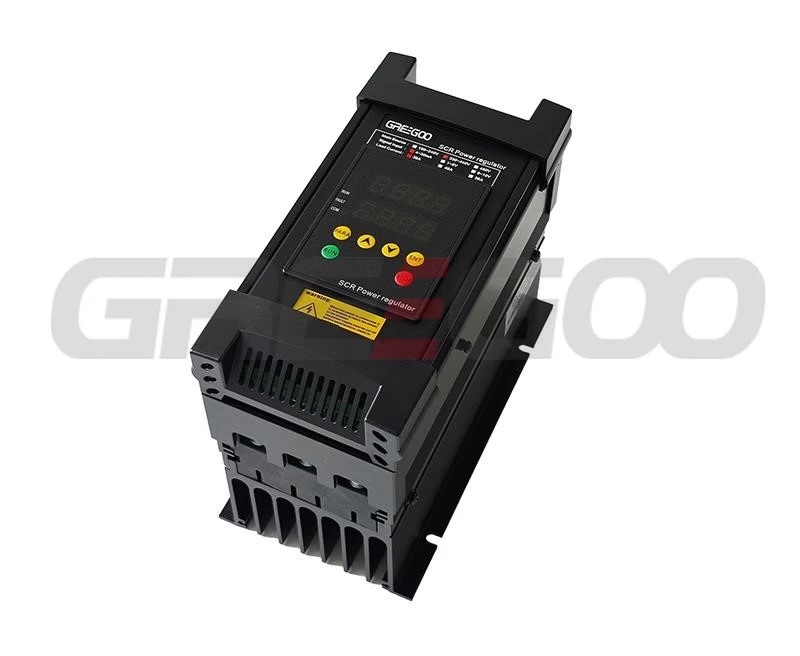

Three phase SCR Power Regulator HGW6

◎ Adopts 32-bit MCU dual-core control with PID closed-loop control for 100% linear output.

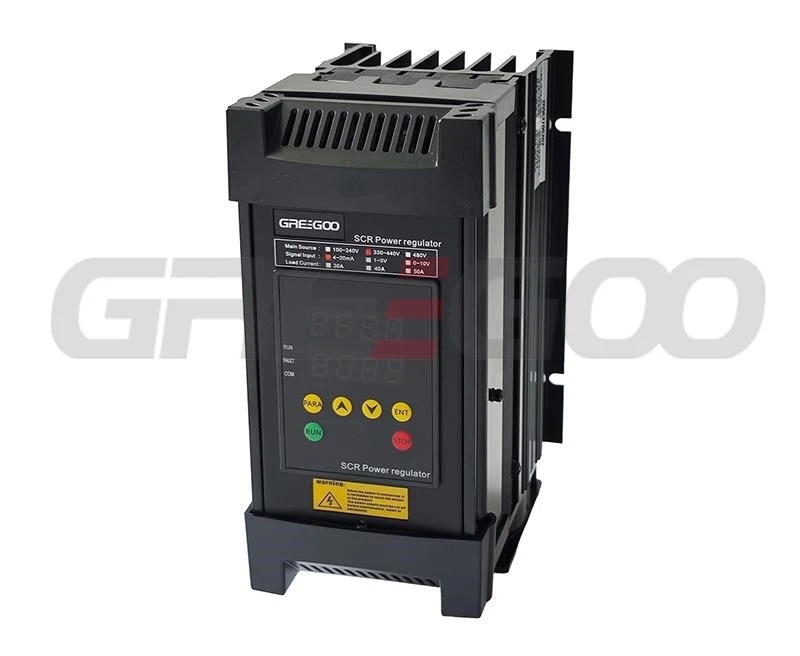

◎ Dual-row digital display with freely definable display of input, output, voltage, current, and power.

◎ Dual-channel input signal design with direct switching between current and voltage.

◎ Fast-acting fuse combined with transformer for dual overcurrent protection.

◎ Parameter storage and one-key reset function.

◎ MODBUS RTU communication.

Model explanation

Part Numbers	1-2-3-4-5-6	e.g.	HGW6-4-4-040-P

	Description	Code	Value
*1	Design Code	HGW6
*2	Phase	4	Three phase
*3	Main Power Supply	2	110-220V
		4	330-440V
*4	Rated Current	030	30A
		040	40A
		050	50A
		060	60A
		...	...
		200	200A
*5	Control mode setting	P	Phase constant voltage current limiting
		C	Phase constant current
		CV	Phase constant power
		Z	Cycle zero-crossing power regulation
		ZV	Fixed cycle zero crossing power regulation
*6	Additional configuration	EX	Explosion-proof cabinet (custom made)
		3	Three phase current full test

Specification

Model	Rated Current	Load Power(KW)		Product size (mm)			Mount size (mm)		Weight (Kg)	Screw	Torque	Cooling mode	Housing
		220V	380V	L	W	H	L	W
HGW6-4-4-030-P	30A	9.5	16.5	200	110	160	130	105	2.2	M6	40kgfcm	Natural	Fig. 1
HGW6-4-4-040-P	40A	12.5	20	200	110	160	130	105	2.5	M6	40kgfcm	Natural	Fig. 1
HGW6-4-4-030-PF	30A	9.5	16.5	225	110	170	130	105	2.2	M6	40kgfcm	Forced air cooling	Fig. 2
HGW6-4-4-040-PF	40A	12.5	20	225	110	170	130	105	2.5	M6	40kgfcm	Forced air cooling	Fig. 2
HGW6-4-4-050-P	50A	15.5	27	250	140	195	162	135	3.5	M6	50kgfcm	Forced air cooling	Fig. 3
HGW6-4-4-060-P	60A	19	33	250	140	195	162	135	3.5	M6	50kgfcm	Forced air cooling
HGW6-4-4-075-P	75A	23.5	41	250	140	195	162	135	3.5	M6	70kgfcm	Forced air cooling
HGW6-4-4-080-P	80A	25.5	44	250	140	195	162	135	3.5	M6	75kgfcm	Forced air cooling
HGW6-4-4-090-P	90A	28.5	49	250	140	205	162	135	3.5	M6	85kgfcm	Forced air cooling	Fig. 4
HGW6-4-4-100-P	100A	32	55	250	140	205	162	135	3.5	M6	85kgfcm	Forced air cooling	Fig. 4
HGW6-4-4-125-P	125A	40	68.5	290	140	205	202	135	4.4	M8	95kgfcm	Forced air cooling	Fig. 5
HGW6-4-4-150-P	150A	45	75	340	140	205	252	135	5.5	M8	170kgfcm	Forced air cooling	Fig. 6
HGW6-4-4-175-P	175A	53	88	390	140	205	302	135	6	M8	200kgfcm	Forced air cooling	Fig. 7
HGW6-4-4-200-P	200A	60	100	379	185	225	272	170	13	M8	220kgfcm	Forced air cooling	Fig. 8

Panel display

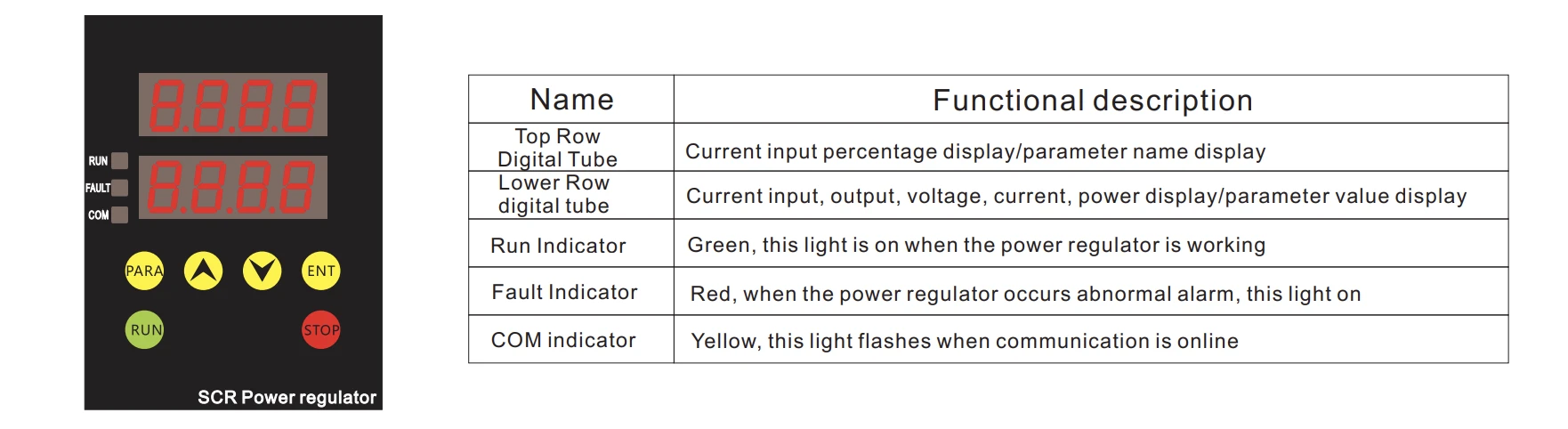

HGW6 panel display

Wiring

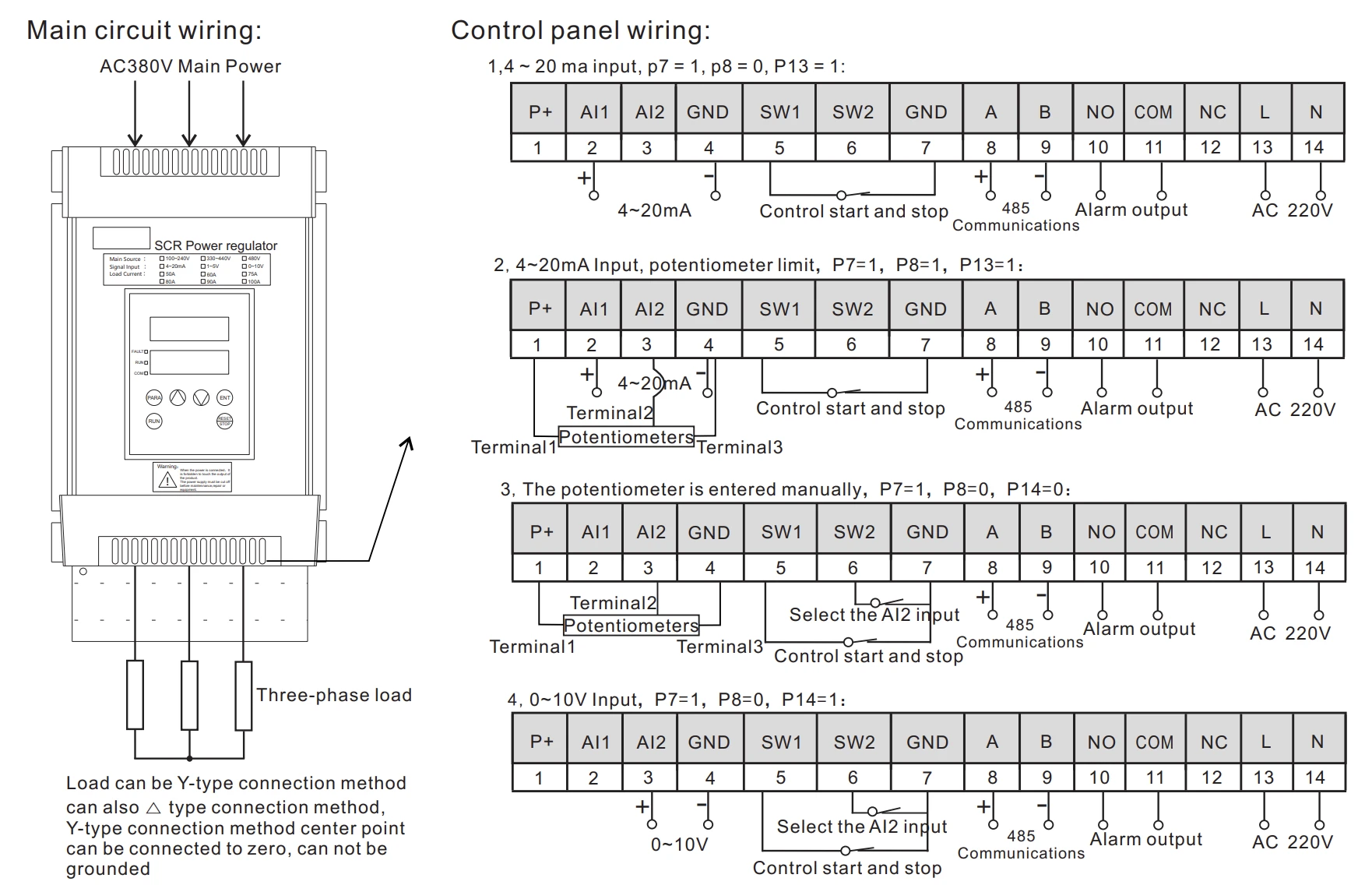

Wiring of HGW6 three phase scr controller

Download

3 Phase SCR Voltage Regulator HGW6 (PDF)
