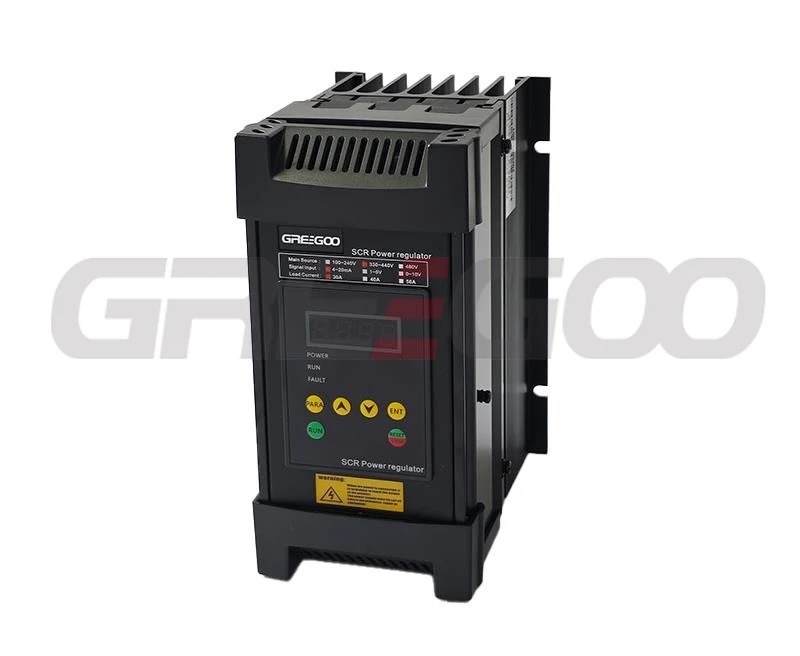

3 Phase Thyristor Controller for Heater HGW5

Product Features
◎ Utilizes MCU embedded microcontroller control technology and PID closed-loop control for 100% linear output.
◎ Three-phase full-control 6-pulse output, compatible with transformer loads or loads with neutral wire connection.
◎ Dual-channel input signal design: 0~5V, 0~10V, 4~20mA, or potentiometer limit, with direct switching.
◎ Fast-acting fuse combined with electronic transformer for dual overcurrent protection.
◎ Digital display for input, output, current, voltage, power, with one-key switching.

Model explaination

Part Numbers	1-2-3-4-*5	e.g.	HGW5-4-4-040-P

	Description	Code	Value
*1	Design Code	HGW5
*2	Phase	4	Three phase
*3	Main Power Supply	2	110-220V
		4	380-440V
*4	Rated Current	030	30A
		040	40A
		050	50A
		060	60A
		...	...
		200	200A
*5	Control mode setting	Z	Zero positin adjustment
		P	Open-loop phase control
		C	Constant current control

Part Numbers

Part Numbers	Current	Load Power (KW)		Appearance Dimensions (mm)			Fixed Dimensions (mm)		Weight (kg)	Screw and Torque:		Cooling Method	Housing
Part Numbers	Current	220V	380V	Length	Width	Height	Length	Width	Weight (kg)	Screw and Torque:		Cooling Method	Housing

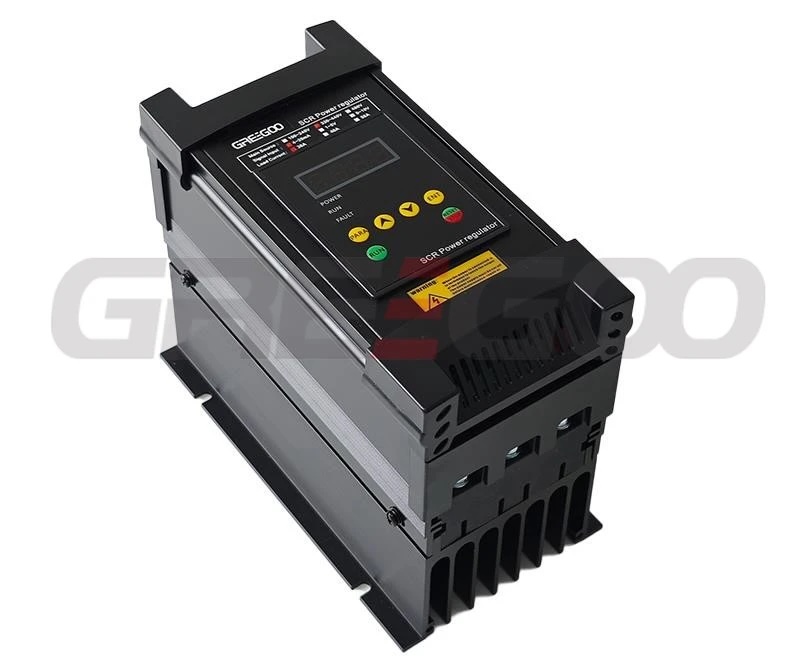

HGW5-4-4-030-P	30A	9.5	16.5	200	110	160	130	105	2.2	M6	40kgfcm	Natural cooling	Fig. 1
HGW5-4-4-040-P	40A	12.5	20	200	110	160	130	105	2.5	M6	40kgfcm	Natural cooling	Fig. 1

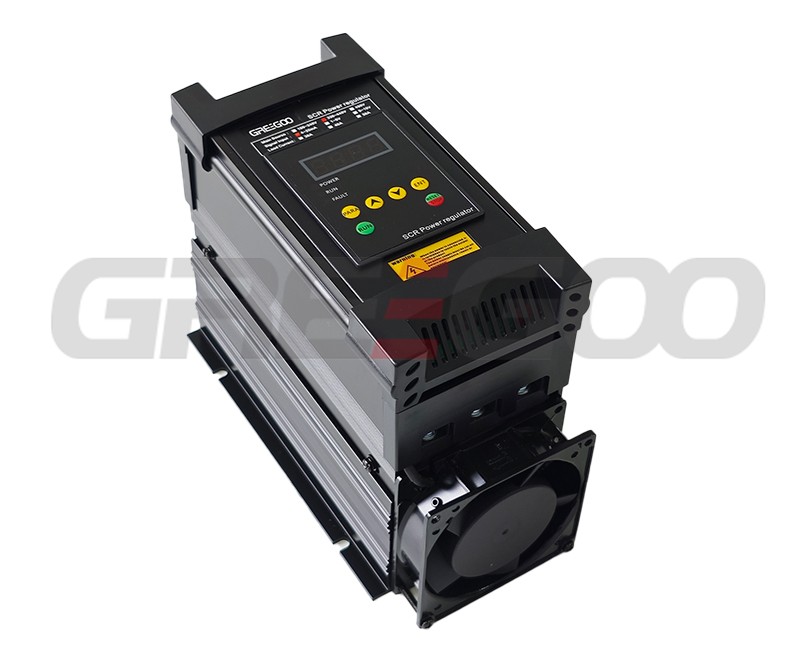

HGW5-4-4-030-PF	30A	9.5	16.5	225	110	170	130	105	2.2	M6	40kgfcm	forced air cooling	Fig. 2
HGW5-4-4-040-PF	40A	12.5	20	225	110	170	130	105	2.5	M6	40kgfcm	forced air cooling	Fig. 2

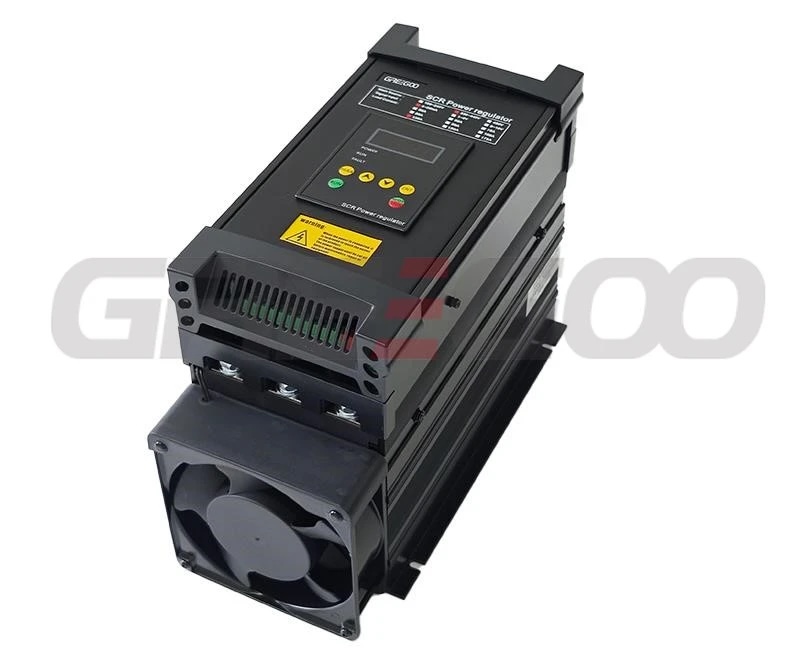

HGW5-4-4-050-P	50A	15.5	27	250	140	195	162	135	3.5	M6	50kgfcm	forced air cooling	Fig. 3
HGW5-4-4-060-P	60A	19	33	250	140	195	162	135	3.5	M6	50kgfcm	forced air cooling
HGW5-4-4-075-P	75A	23.5	41	250	140	195	162	135	3.5	M6	70kgfcm	forced air cooling
HGW5-4-4-080-P	80A	25.5	44	250	140	195	162	135	3.5	M6	75kgfcm	forced air cooling
HGW5-4-4-090-P	90A	28.5	49	250	140	205	162	135	3.5	M6	85kgfcm	forced air cooling	Fig. 4
HGW5-4-4-100-P	100A	32	55	250	140	205	162	135	3.5	M6	85kgfcm	forced air cooling	Fig. 4
HGW5-4-4-125-P	125A	40	68.5	290	140	205	202	135	4.4	M8	95kgfcm	forced air cooling	Fig. 5
HGW5-4-4-150-P	150A	45	75	340	140	205	252	135	5.5	M8	170kgfcm	forced air cooling	Fig. 6
HGW5-4-4-175-P	175A	53	88	390	140	205	302	135	6	M8	200kgfcm	forced air cooling	Fig. 7
HGW5-4-4-200-P	200A	60	100	370	185	225	273	170	13	M8	220kgfcm	forced air cooling	Fig. 8

Download

SCR Voltage Regulator Three Phase Digital Type HGW5 (PDF)
