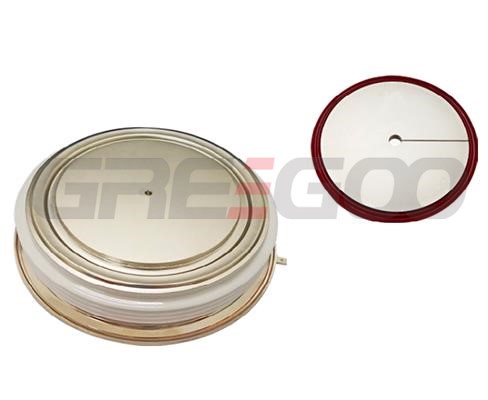

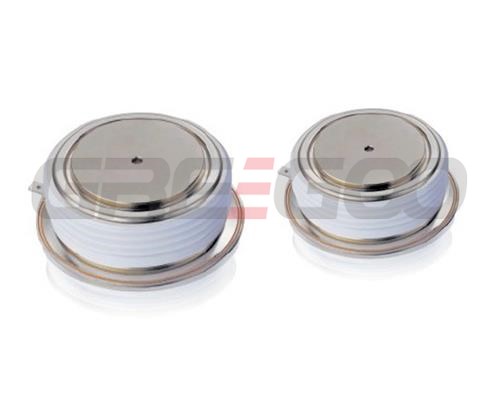

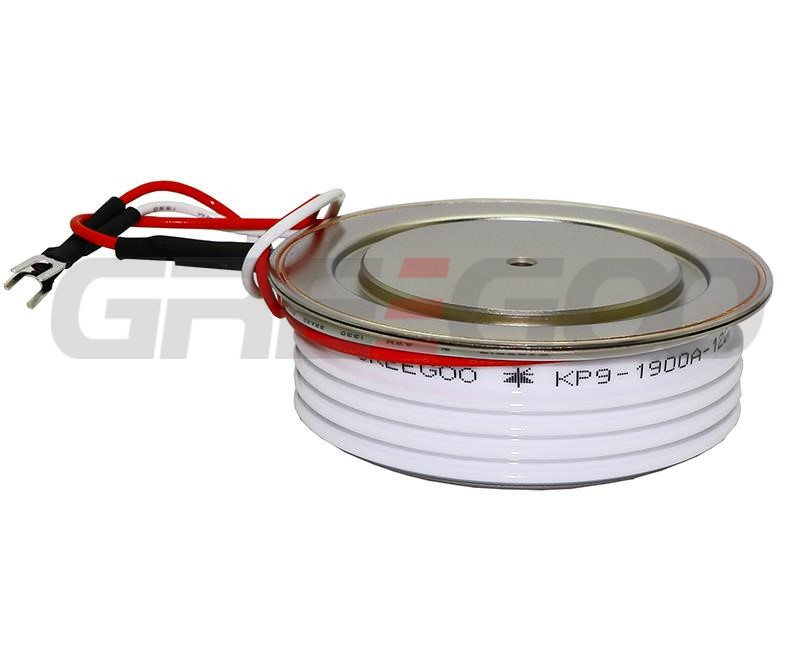

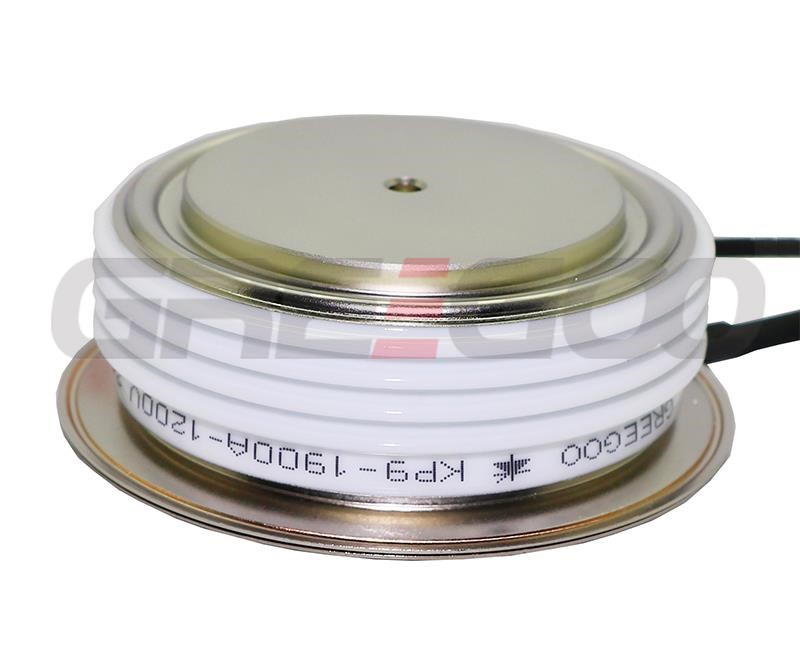

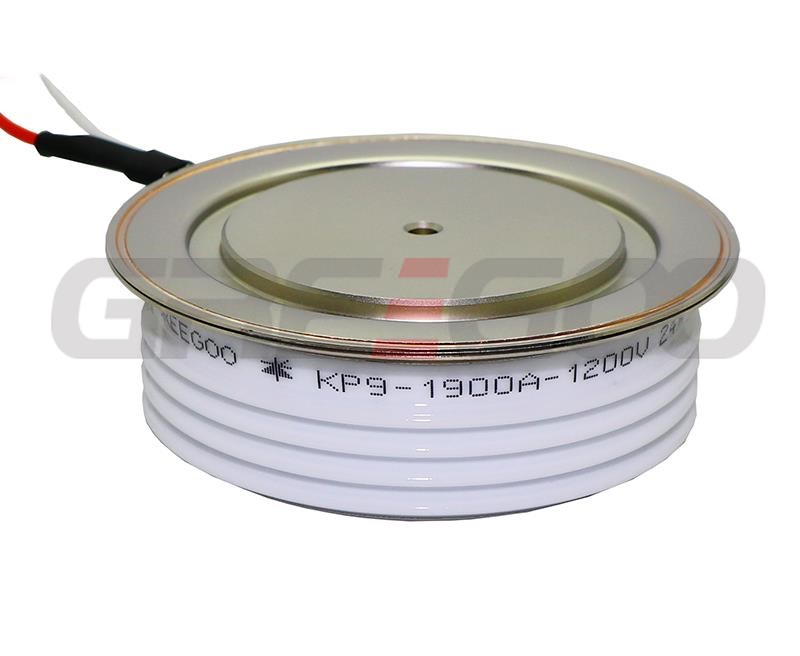

Phase Control Thyristor (KP Series)
Home Products Capsule Thyristor & RectifierCapsule Phase Control ThyristorPhase Control Thyristor (KP Series)
Phase Control Thyristor (KP Series)
Features
·All Diffused Structure
·Distributed gate design
·High dv/dt capability
·Low on-state voltage
·Low switching loss
Applications
·Traction and transmission
·HVDC、SVC
·High current power supply
·Soft-starter、Motor excitation
·Induction heating
Features
·Free-floating silicon technology
·Low on-state and switching losses
·Optimum power handling capability
·Distributed amplifying gate
Applications
·Traction and transmission
·HVDC
·SVC
·High current power supply
TYPE | IT(AV) | TC | VDRM/VRRM | ITSM | I2t | VTM @IT&TJ=25℃ | Tjm | Rjc | Rc-s | F | m | |
A | ℃ | V | @TVJIM&10msA | A2s | V / A | ℃ | ℃/W | ℃/W | KN | Kg | ||
Voltage up to 4200V | ||||||||||||
KP3170-** | 3170 | 70 | 3400~4200 | 52000 | 1.3x107 | 1.4 | 3000 | 125 | 0.008 | 0.002 | 70 | 1.45 |
KP4310-** | 4310 | 70 | 3400~4200 | 60000 | 1.8x107 | 1.3 | 3000 | 125 | 0.006 | 0.002 | 90 | 2.9 |
KP5580-** | 5580 | 70 | 3400~4200 | 90000 | 4.0x107 | 1.4 | 5000 | 125 | 0.004 | 0.001 | 120 | 3.6 |
Voltage up to 5200V | ||||||||||||
KP970-** | 970 | 70 | 4400~5200 | 13500 | 9.1x105 | 2.7 | 2000 | 125 | 0.022 | 0.005 | 22 | 0.6 |
KP2080-** | 2080 | 70 | 4400~5200 | 29200 | 4.2x106 | 1.6 | 2000 | 125 | 0.01 | 0.003 | 60 | 1.1 |
KP2780-** | 2780 | 70 | 4400~5200 | 42000 | 8.8x106 | 1.7 | 3000 | 125 | 0.008 | 0.002 | 70 | 1.45 |
KP3910-** | 3910 | 65 | 4400~5200 | 55000 | 1.5x107 | 1.5 | 3000 | 125 | 0.006 | 0.002 | 90 | 2.9 |
KP4750-** | 4750 | 70 | 4400~5200 | 8700 | 3.7x107 | 1.5 | 5000 | 110 | 0.004 | 0.001 | 120 | 3.6 |
Voltage up to 6600V | ||||||||||||
KP350-** | 350 | 70 | 5800~6600 | 4500 | 1.0x105 | 2.2 | 500 | 125 | 0.039 | 0.008 | 10 | 0.33 |
KP730-** | 730 | 70 | 5800~6600 | 11800 | 6.9x105 | 2.2 | 1000 | 125 | 0.022 | 0.005 | 22 | 0.6 |
KP1420-** | 1420 | 70 | 5800~6600 | 22400 | 2.5x106 | 2.1 | 1500 | 125 | 0.01 | 0.003 | 60 | 1.1 |
KP1800-** | 1800 | 70 | 5400~6600 | 32000 | 5.1x106 | 1.9 | 1600 | 125 | 0.008 | 0.002 | 70 | 1.45 |
KP2810-** | 2810 | 70 | 5800~6600 | 45000 | 1.0x107 | 2 | 3000 | 125 | 0.006 | 0.002 | 90 | 2.9 |
KP4250-** | 4250 | 70 | 5800~6600 | 71400 | 2.5x107 | 1.7 | 3000 | 110 | 0.004 | 0.001 | 120 | 3.6 |
Voltage up to 7200V | ||||||||||||
KP300-** | 300 | 70 | 6800~7200 | 3400 | 5.8x104 | 2.4 | 500 | 115 | 0.039 | 0.008 | 10 | 0.4 |
KP640-** | 640 | 70 | 6800~7200 | 9000 | 4.0x105 | 2.3 | 1000 | 115 | 0.022 | 0.005 | 22 | 0.65 |
KP1150-** | 1150 | 70 | 6800~7200 | 18300 | 1.6x106 | 2.4 | 1500 | 115 | 0.01 | 0.003 | 60 | 1.3 |
KP1510-** | 1510 | 70 | 6800~7200 | 26000 | 3.3x106 | 2 | 1600 | 115 | 0.008 | 0.002 | 70 | 1.85 |
KP2640-** | 2640 | 70 | 6800~7200 | 40000 | 8.0x106 | 1.5 | 1500 | 115 | 0.006 | 0.002 | 90 | 2.9 |
Voltage up to 8500V | ||||||||||||
KP270-** | 270 | 70 | 7400~8500 | 2900 | 4.2x104 | 2.8 | 500 | 115 | 0.045 | 0.008 | 10 | 0.4 |
KP580-** | 580 | 70 | 7400~8500 | 6000 | 1.8x105 | 2.6 | 1000 | 115 | 0.022 | 0.005 | 22 | 0.65 |
KP1080-** | 1080 | 70 | 7400~8500 | 11300 | 6.3x105 | 2.8 | 1500 | 115 | 0.01 | 0.003 | 60 | 1.3 |
KP1480-** | 1480 | 70 | 7400~8500 | 17000 | 1.4x106 | 2.1 | 1600 | 115 | 0.009 | 0.002 | 70 | 1.85 |
TYPE | IT(AV) | TC | VDRM/VRRM | ITSM | I2t | VTM @IT&TJ=25℃ | Tjm | Rjc | Rc-s | F | m | |
A | ℃ | V | @TVJIM&10msA | A2s | V / A | ℃ | ℃/W | ℃/W | KN | Kg | ||
Voltage Up to 1800V | ||||||||||||
KP320-** | 320 | 70 | 1200~1800 | 3840 | 7.4x104 | 1.6 | 600 | 125 | 0.08 | 0.02 | 4 | 0.06 |
KP400-** | 400 | 70 | 1200~1800 | 4800 | 1.1x105 | 1.6 | 1200 | 125 | 0.045 | 0.01 | 13 | 0.2 |
KP600-** | 600 | 65 | 1200~1800 | 7200 | 2.6x105 | 1.65 | 1500 | 125 | 0.04 | 0.008 | 15 | 0.26 |
KP800-** | 800 | 70 | 1200~1800 | 9600 | 4.6x105 | 1.6 | 1500 | 125 | 0.039 | 0.008 | 15 | 0.26 |
KP1000-** | 1000 | 70 | 1200~1800 | 12000 | 7.2x105 | 1.45 | 1500 | 125 | 0.03 | 0.006 | 20 | 0.33 |
KP1200-** | 1200 | 70 | 1200~1800 | 14400 | 10.0x105 | 1.6 | 3000 | 125 | 0.022 | 0.005 | 25 | 0.46 |

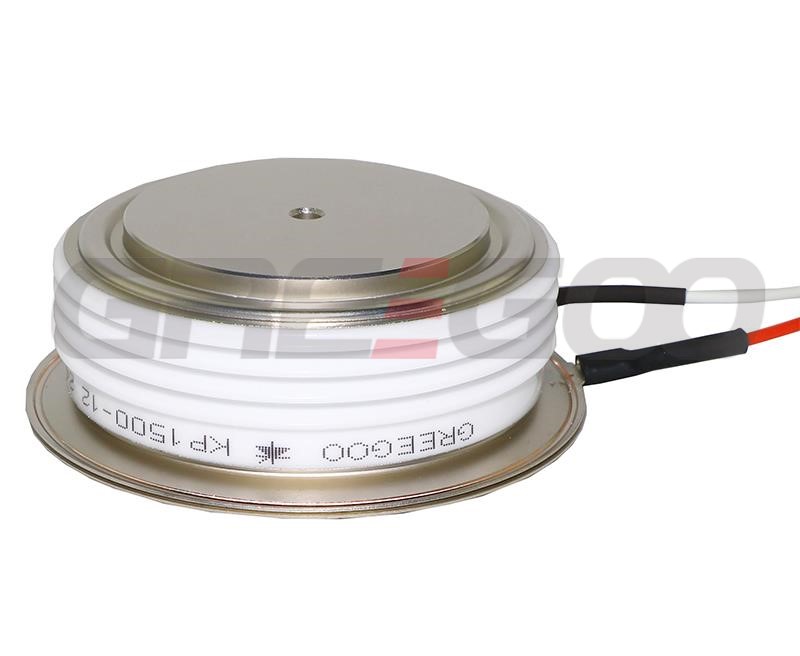

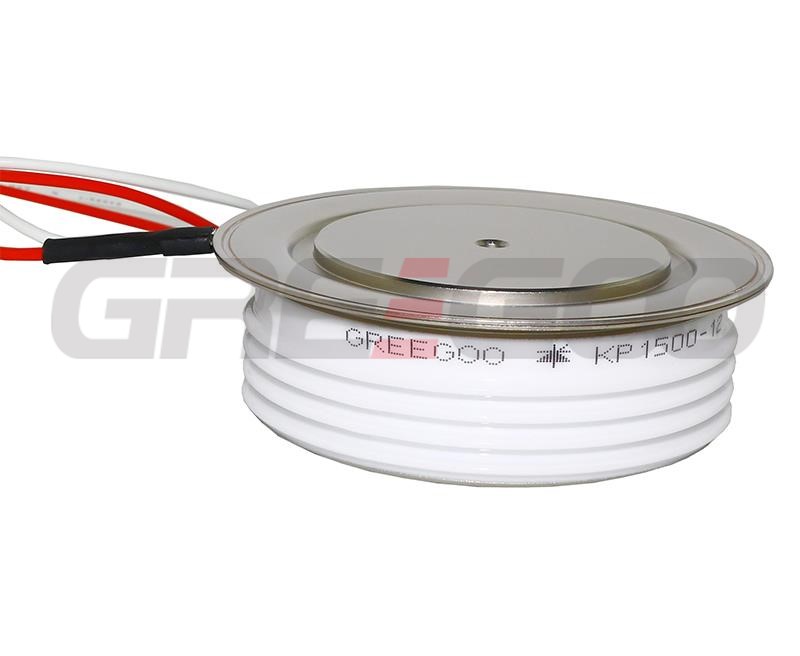

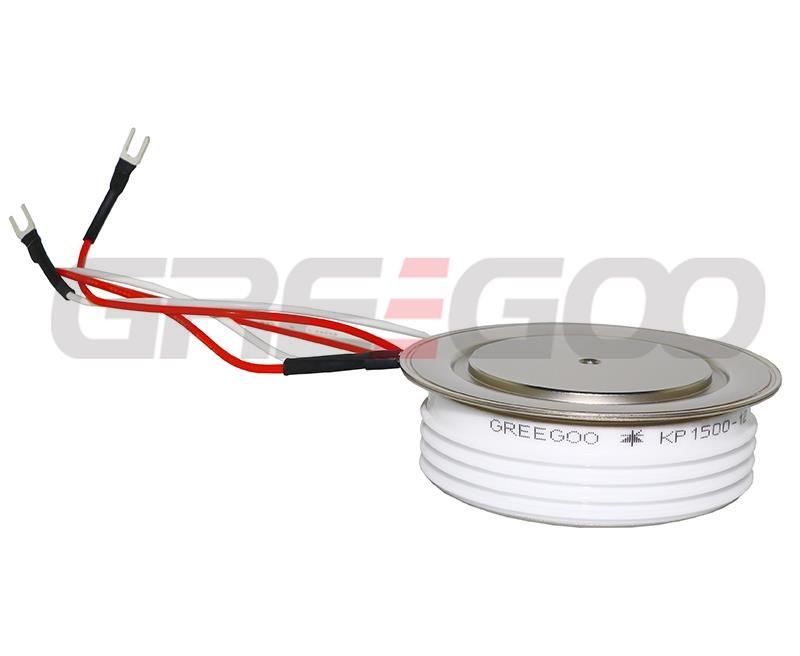

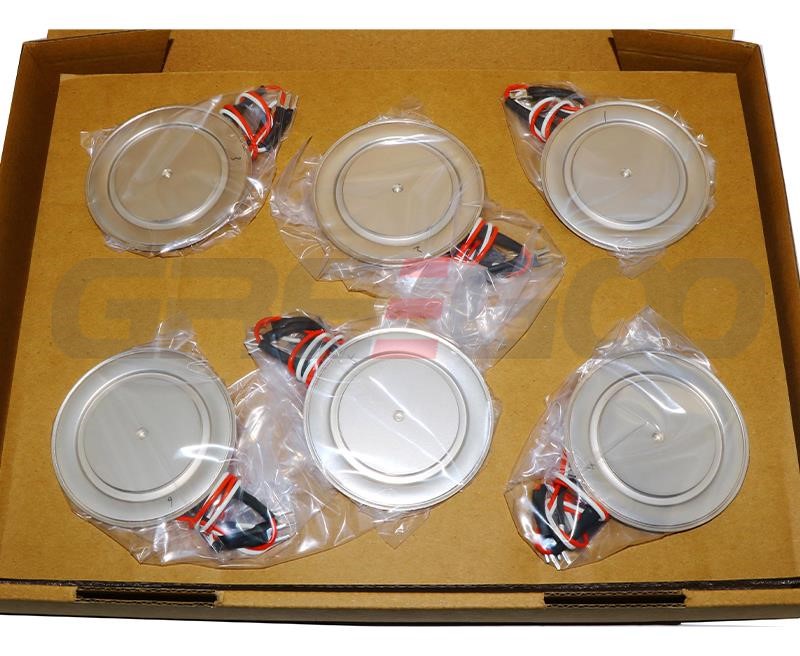

KP1500-** | 1500 | 70 | 1200~1800 | 18000 | 1.6x106 | 1.55 | 3000 | 125 | 0.018 | 0.005 | 27 | 0.593 |
KP1800-** | 1800 | 70 | 1200~1800 | 21600 | 2.3x106 | 1.5 | 3000 | 125 | 0.015 | 0.0045 | 30 | 0.72 |
KP2500-** | 2500 | 70 | 1200~1800 | 30000 | 4.5x106 | 1.45 | 3000 | 125 | 0.0125 | 0.004 | 33 | 0.85 |
KP3000-** | 3000 | 70 | 1200~1800 | 36000 | 6.5x106 | 1.4 | 3000 | 125 | 0.01 | 0.003 | 35 | 1.1 |
KP4000-** | 4000 | 65 | 1200~1800 | 48000 | 11.5x106 | 1.35 | 3000 | 125 | 0.008 | 0.002 | 60 | 1.4 |
KP6000-** | 6000 | 65 | 1200~1800 | 72000 | 26.0x106 | 1.3 | 5000 | 125 | 0.006 | 0.0015 | 80 | 1.9 |
Voltage Up to 2400V | ||||||||||||
KP500-** | 500 | 70 | 2000~2400 | 7000 | 2.5x105 | 1.8 | 1500 | 125 | 0.039 | 0.008 | 15 | 0.26 |
KP800-** | 800 | 70 | 2000~2400 | 11200 | 6.3x105 | 1.8 | 2400 | 125 | 0.03 | 0.006 | 20 | 0.33 |
KP1000-** | 1000 | 70 | 2000~2400 | 14000 | 7.2x105 | 1.8 | 3000 | 125 | 0.022 | 0.005 | 25 | 0.46 |
KP1200-** | 1200 | 70 | 2000~2400 | 14400 | 10.0x105 | 1.8 | 3000 | 125 | 0.02 | 0.005 | 27 | 0.5 |
KP1500-** | 1500 | 70 | 2000~2400 | 18000 | 1.6x106 | 1.7 | 3000 | 125 | 0.015 | 0.0045 | 30 | 0.72 |
KP2100-** | 2100 | 70 | 2000~2400 | 24000 | 2.9x106 | 1.6 | 3000 | 125 | 0.0125 | 0.004 | 33 | 0.85 |
KP3000-** | 3000 | 65 | 2000~2400 | 36000 | 6.5x106 | 1.45 | 3000 | 125 | 0.01 | 0.003 | 35 | 1.1 |
KP5700-** | 5700 | 65 | 2000~2400 | 68400 | 23.0x106 | 1.3 | 5000 | 125 | 0.006 | 0.0015 | 80 | 1.9 |
Voltage Up to 3200V | ||||||||||||
KP500-** | 500 | 70 | 2600~3200 | 7000 | 2.5x105 | 2.15 | 1500 | 125 | 0.039 | 0.008 | 15 | 0.26 |
KP1000-** | 1000 | 70 | 2600~3200 | 12000 | 7.2x105 | 2.1 | 2500 | 125 | 0.022 | 0.005 | 25 | 0.46 |
KP1200-** | 1200 | 70 | 2600~3200 | 14400 | 1.0x106 | 2 | 3000 | 125 | 0.018 | 0.005 | 27 | 0.593 |
KP1700-** | 1700 | 70 | 2600~3200 | 20400 | 2.1x106 | 1.95 | 3000 | 125 | 0.015 | 0.0045 | 30 | 0.72 |
KP2000-** | 2000 | 70 | 2600~3200 | 24000 | 2.9x106 | 1.85 | 3000 | 125 | 0.0125 | 0.004 | 33 | 0.85 |
KP2500-** | 2500 | 70 | 2600~3200 | 25200 | 3.2x106 | 1.75 | 3000 | 125 | 0.011 | 0.003 | 35 | 1.5 |
KP3700-** | 3700 | 65 | 2600~3200 | 44400 | 9.9x106 | 1.65 | 3000 | 125 | 0.008 | 0.002 | 60 | 1.99 |
KP4500-** | 4500 | 65 | 2600~3200 | 54000 | 1.5x107 | 1.65 | 5000 | 125 | 0.006 | 0.0015 | 80 | 1.9 |
Voltage Up to 4200V | ||||||||||||
KP480-** | 480 | 70 | 3600~4200 | 5760 | 1.7x105 | 2.4 | 1200 | 125 | 0.039 | 0.008 | 15 | 0.26 |
KP1000-** | 1000 | 70 | 3600~4200 | 12000 | 7.2x105 | 2.45 | 2500 | 125 | 0.022 | 0.005 | 25 | 0.46 |
KP1200-** | 1200 | 70 | 3600~4200 | 14400 | 1.0x106 | 2.4 | 3000 | 125 | 0.016 | 0.005 | 28 | 0.65 |
KP1500-** | 1500 | 70 | 3600~4200 | 18000 | 1.6x106 | 2.5 | 3000 | 125 | 0.015 | 0.0045 | 30 | 0.72 |
KP1900-** | 1900 | 70 | 3600~4200 | 22800 | 2.6x106 | 2.3 | 3000 | 125 | 0.0125 | 0.004 | 33 | 0.85 |
KP2100-** | 2100 | 65 | 3600~4200 | 24000 | 2.9x106 | 2.2 | 3000 | 125 | 0.011 | 0.003 | 35 | 1.5 |
KP3000-** | 3000 | 70 | 3600~4200 | 36000 | 6.5x106 | 1.7 | 3000 | 125 | 0.008 | 0.002 | 60 | 1.99 |
KP3800-** | 3800 | 70 | 3600~4200 | 45600 | 1.0x107 | 1.9 | 5000 | 125 | 0.006 | 0.0015 | 80 | 1.9 |
