LFN100N50AFD Silicon N-Channel Power MOSFET Integrated FRD

1. Key Parameters:

   • Drain-Source Voltage (V_DSS): 500V
   • Continuous Drain Current (I_D): 90A
   • Power Dissipation (P_D): 1040W
   • On-Resistance (R_DS(ON)): 47mΩ



2. Features:

   • Fast Switching
   • Fast Intrinsic Rectifier
   • Low Gate Charge
   • Low Reverse Transfer Capacitance
   • 100% Single Pulse Avalanche Energy Test



3. Applications:

   • Power switch circuit of PC power supplies



4. Absolute Maximum Ratings (unless otherwise specified, TC=25℃):

   • Drain-Source Voltage (V_DSS): 500V
   • Continuous Drain Current (I_D): 90A (TC=25℃), 63A (TC=100℃)
   • Pulsed Drain Current (I_DMa1): 360A
   • Gate-Source Voltage (V_GS): ±30V
   • Single Pulse Avalanche Energy (E_AS): 6000mJ
   • Repetitive Avalanche Energy (E_Ara1): 500mJ
   • Avalanche Current (I_ARa1): 90A
   • Peak Diode Recovery dv/dt: 20V/ns
   • Power Dissipation (P_D): 1040W
   • Derating Factor above 25℃: 8.32W/℃
   • Operating Junction and Storage Temperature Range (T_J, T_stg): -55 to 150℃
   • Maximum Temperature for Soldering (T_L): 300℃



5. Thermal Characteristics:

   • Thermal Resistance, Junction-to-Case (R_θJC): 0.12℃/W
   • Thermal Resistance, Case to Heatsink (R_θJCS): 0.05℃/W



6. Electrical Characteristics (unless otherwise specified, TC=25℃):

   • Drain-Source Breakdown Voltage (V_DSS): 500V
   • Drain-Source Leakage Current (I_DSS): Max 10µA (25℃), Max 1000µA (125℃)
   • Gate-Source Forward Leakage (I_GSS(F)): Max 200nA
   • Gate-Source Reverse Leakage (I_GSS(R)): Max -200nA
   • On-Resistance (R_DS(ON)): 47 to 65mΩ
   • Gate Threshold Voltage (V_GS(TH)): 3.0 to 5.0V
   • Forward Transconductance (g_fs): Typical 68S



7. Dynamic Characteristics:

   • Input Capacitance (C_iss): Typical 16720pF
   • Output Capacitance (C_oss): Typical 1250pF
   • Reverse Transfer Capacitance (C_rss): Typical 160pF
   • Total Gate Charge (Q_g): Typical 230nC
   • Gate to Source Charge (Q_gs): Typical 94nC
   • Gate to Drain Charge (Q_gd): Typical 52nC



8. Source-Drain Diode Characteristics:

   • Continuous Source Current (I_SD): Max 90A
   • Maximum Pulsed Current (I_SM): Max 360A
   • Diode Forward Voltage (V_SD): Max 1.5V
   • Reverse Recovery Time (t_rr): 135 to 200ns
   • Reverse Recovery Charge (Q_rr): Typical 1300nC



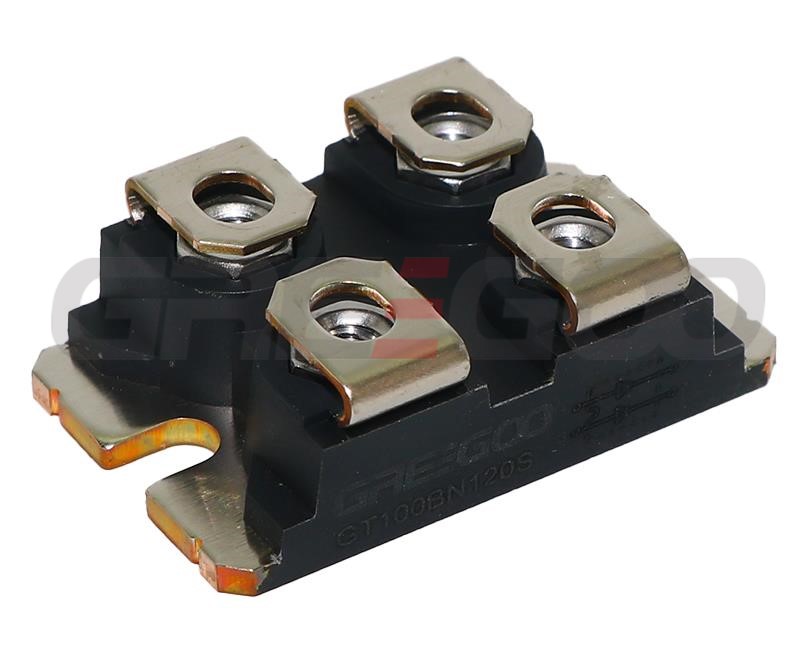

LFN100N50AFD Silicon N-Channel Power MOSFET Integrated FRD made by Greegoo is packaged in SOT-227B, complies with RoHS standards, and is suitable for various power switching circuits for system miniaturization and high efficiency.
