JDZXW-15 voltage transformer
JDZXW-15 voltage transformer is suitable for AC power system with rated frequency of 50Hz or 60Hz and rated voltage of 15kV for electric energy measurement, voltage measurement and relay protection.
Installation place:Outdoor
Ambient temperature: the highest temperature is 40 ℃ , the lowest temperature is -5 ℃ , Daily average temperature does not exceed 30℃ .
Atmospheric conditions: There is no serious pollution in the atmosphere.
This series of voltage transformers is a pillar-type structure, which is fully enclosed with epoxy resin, which is resistant to pollution and humidity. It is

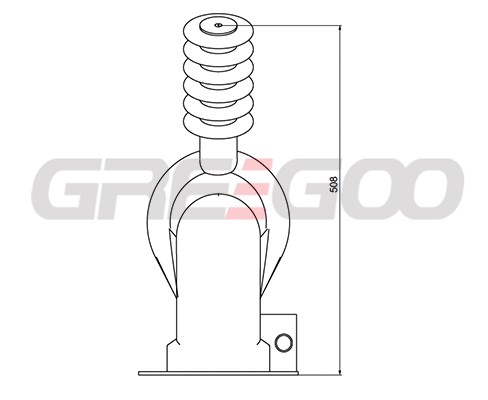

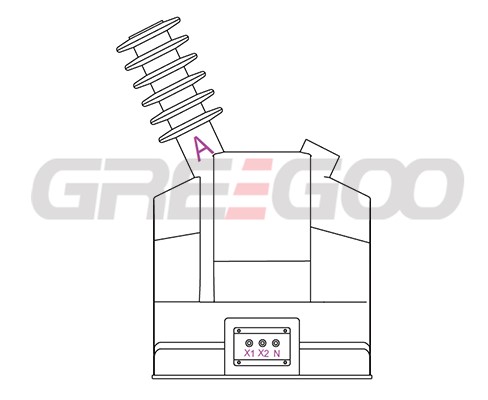

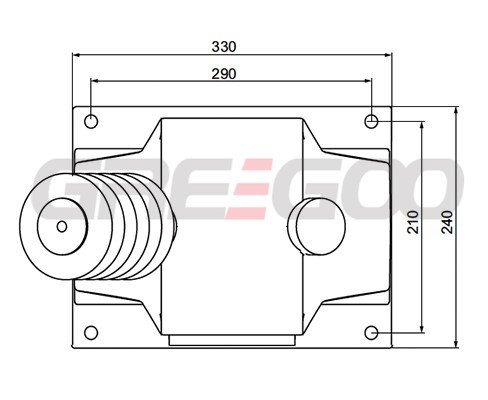

also suitable for use in tropical areas. The transformers do not require special maintenance. Waterproof connectors are installed at the secondary outlet terminals of the transformers. There is a hole on the front and side of the terminal box, which is matched with the outlet end for wiring, which is safe and reliable. There are grounding bolts and four mounting holes for installation on the bottom plate of the product.
| Model | Rated voltage ratio KV | Accuracy class | Rated capacity VA | Max capacity VA | Rated insulation level KV |
| JDZXW-15 | 15/ √ 3/0.1/ √ 3/0.1/3 | 0.2/3P | 15/50 | 200 | 17.5/55/105 |
| 0.5/3P | 30/50 |
