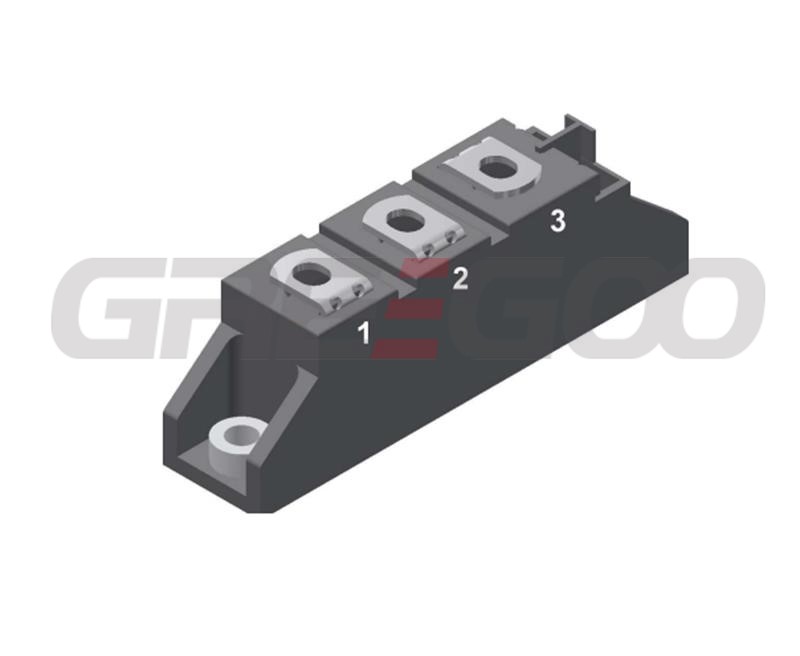

Half Bridge Rectifier Modules (MDMA MDNA)
Home Products Thyristor Diode ModuleIXYS Diode Thyristor ModuleHalf Bridge Rectifier Modules (MDMA MDNA)
Specification
Half Bridge Rectifier Modules (MDMA MDNA)
Model No. |
IFAV(A) | Tc ℃ |
VRRM V |
IFSM A |
I²t kA2·s |
V(TO) V |
rT mΩ |
Tvj max ºC |
Rth(j-c) ºC/W |
Weight g |
Package | Size (L×B×H) mm |
MDMA25P1200TG | 25 | 100 | 1200 | 320 | 0.51 | 0.85 | 11.1 | 150 | 1.1 | 76 | TO-240 AA | 92x20x30 |
MDMA25P1600TG | 25 | 100 | 1600 | 320 | 0.51 | 0.85 | 11.1 | 150 | 1.1 | 76 | TO-240 AA | 92x20x30 |
MDMA35P1200TG | 35 | 100 | 1200 | 500 | 1.25 | 0.83 | 7.3 | 150 | 0.9 | 76 | TO-240 AA | 92x20x30 |
MDMA35P1600TG | 35 | 100 | 1600 | 500 | 1.25 | 0.83 | 7.3 | 150 | 0.9 | 76 | TO-240 AA | 92x20x30 |
MDMA50P1200TG | 50 | 100 | 1200 | 850 | 3.62 | 0.8 | 5.7 | 150 | 0.65 | 76 | TO-240 AA | 92x20x30 |
MDMA50P1600TG | 50 | 100 | 1600 | 850 | 3.62 | 0.8 | 5.7 | 150 | 0.65 | 76 | TO-240 AA | 92x20x30 |
MDMA65P1200TG | 65 | 100 | 1200 | 1100 | 6.05 | 0.81 | 4.3 | 150 | 0.5 | 76 | TO-240 AA | 92x20x30 |
MDMA65P1600TG | 65 | 100 | 1600 | 1100 | 6.05 | 0.81 | 4.3 | 150 | 0.5 | 76 | TO-240 AA | 92x20x30 |
MDMA85P1200TG | 85 | 100 | 1200 | 1500 | 11.3 | 0.79 | 3.5 | 150 | 0.35 | 76 | TO-240 AA | 92x20x30 |
MDMA85P1600TG | 85 | 100 | 1600 | 1500 | 11.3 | 0.79 | 3.5 | 150 | 0.35 | 76 | TO-240 AA | 92x20x30 |
MDMA110P1200TG | 110 | 100 | 1200 | 2000 | 20 | 0.82 | 2.8 | 150 | 0.3 | 76 | TO-240 AA | 92x20x30 |
MDMA110P1600TG | 110 | 100 | 1600 | 2000 | 20 | 0.82 | 2.8 | 150 | 0.3 | 76 | TO-240 AA | 92x20x30 |
MDMA140P1200TG | 140 | 100 | 1200 | 2800 | 39.2 | 0.78 | 2.2 | 150 | 0.23 | 76 | TO-240 AA | 92x20x30 |
MDMA140P1600TG | 140 | 100 | 1600 | 2800 | 39.2 | 0.78 | 2.2 | 150 | 0.23 | 76 | TO-240 AA | 92x20x30 |
MDMA140P1800TG | 140 | 100 | 1800 | 2800 | 39.2 | 0.78 | 2.2 | 150 | 0.23 | 76 | TO-240 AA | 92x20x30 |
MDMA210P1600YD | 210 | 100 | 1600 | 6600 | 217.8 | 0.76 | 1.2 | 150 | 0.17 | 150 | Y4-M6 | 94x34x30 |
MDMA280P1600YD | 280 | 100 | 1600 | 10500 | 551.3 | 0.74 | 1 | 150 | 0.13 | 150 | Y4-M6 | 94x34x30 |
MDMA380P1600KC | 380 | 100 | 1600 | 11000 | 605 | 0.75 | 0.53 | 150 | 0.11 | 680 | Y1-CU | 115x50x52 |
MDNA25P2200TG | 25 | 100 | 2200 | 320 | 0.51 | 0.85 | 11.1 | 150 | 1.1 | 76 | TO-240 AA | 92x20x30 |
MDNA35P2200TG | 35 | 100 | 2200 | 500 | 1.25 | 0.83 | 7.3 | 150 | 0.9 | 76 | TO-240 AA | 92x20x30 |
MDNA50P2200TG | 50 | 100 | 2200 | 850 | 3.62 | 0.8 | 5.7 | 150 | 0.65 | 76 | TO-240 AA | 92x20x30 |
MDNA65P2200TG | 65 | 100 | 2200 | 1100 | 6.05 | 0.81 | 4.3 | 150 | 0.5 | 76 | TO-240 AA | 92x20x30 |
MDNA85P2200TG | 85 | 100 | 2200 | 1500 | 11.3 | 0.79 | 3.5 | 150 | 0.35 | 76 | TO-240 AA | 92x20x30 |
MDNA110P2200TG | 110 | 100 | 2200 | 2000 | 20 | 0.82 | 2.8 | 150 | 0.3 | 76 | TO-240 AA | 92x20x30 |
MDNA140P2200TG | 140 | 100 | 2200 | 2800 | 39.2 | 0.78 | 2.2 | 150 | 0.23 | 76 | TO-240 AA | 92x20x30 |
MDNA380P2200KC | 380 | 100 | 2200 | 11000 | 605 | 0.75 | 0.53 | 150 | 0.11 | 680 | Y1-CU | 115x50x52 |
