APT75GP120JDQ3 IGBT Module
Home Products SOT-227B SOT-227 PackageIGBT ModuleAPT75GP120JDQ3 IGBT Module
Product details

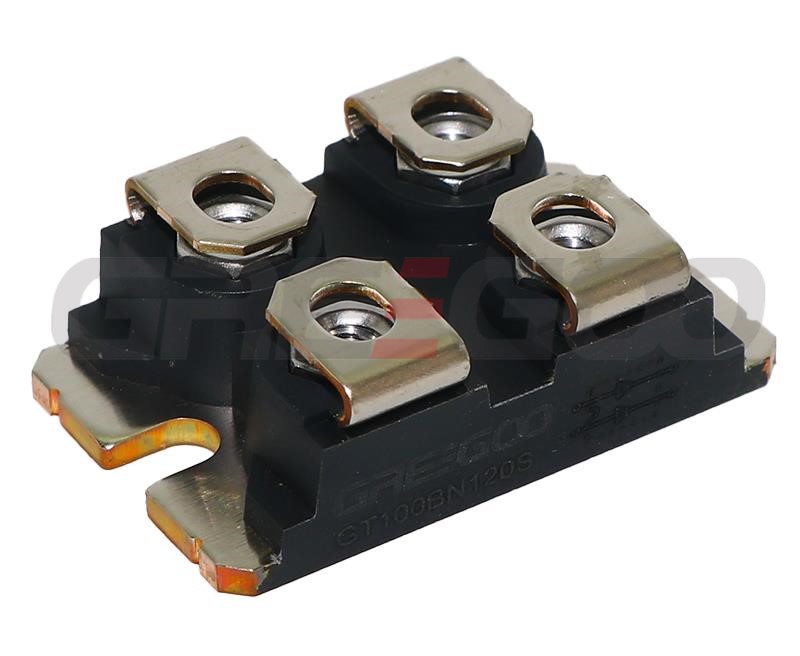

APT75GP120JDQ3 IGBT Module
The POWER IGBT is a new generation of high voltage power IGBTs. Using Punch Through Technology this IGBT is ideal for many high frequency, high voltage switching applications and has been optimized for high frequency switchmode power supplies.
• Low Conduction Loss
• Low Gate Charge
• 20 kHz operation @ 800V, 44A
• 50 kHz operation @ 800V, 20A
• Ultrafast Tail Current shutoff
• RBSOA Rated

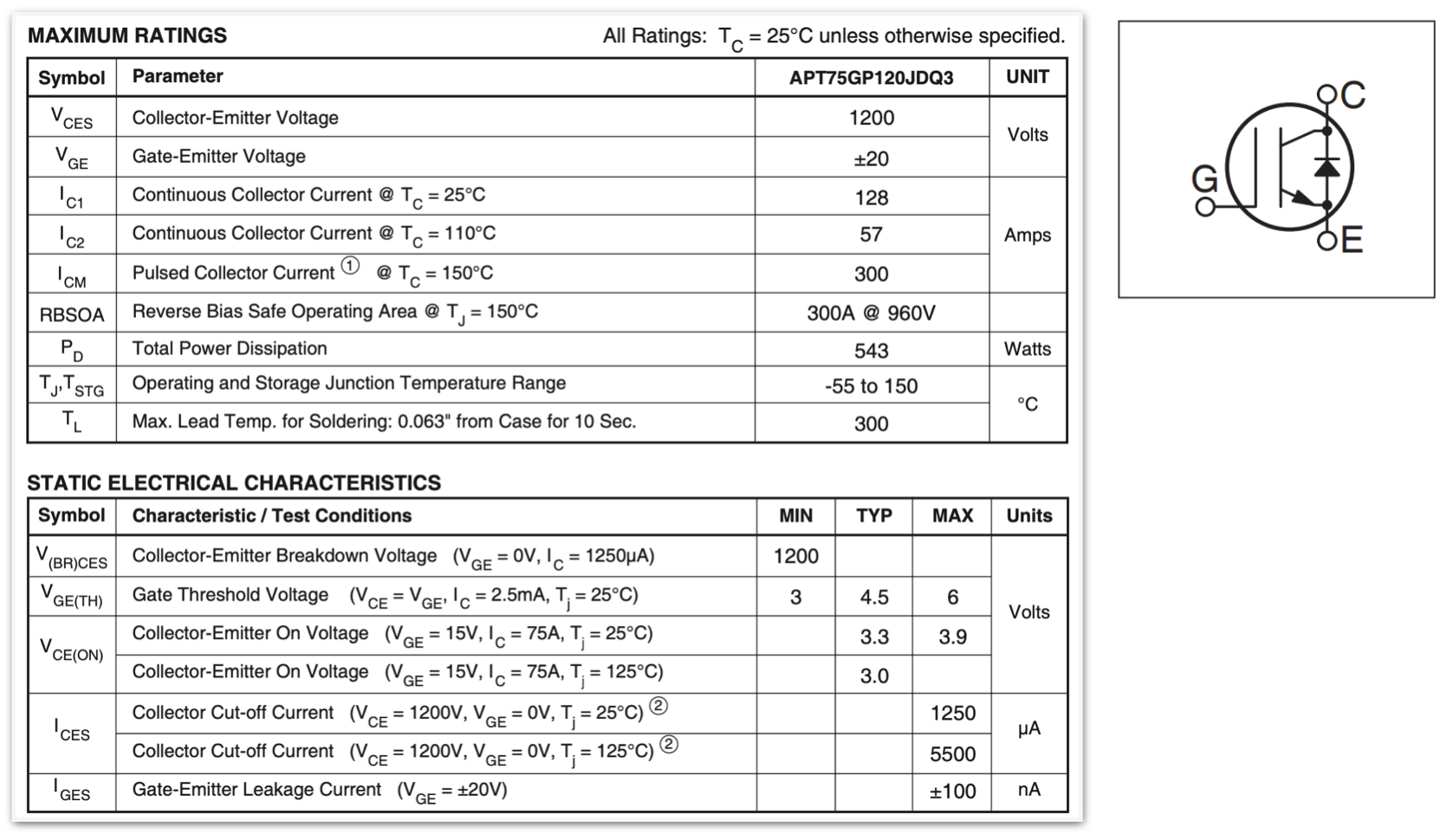

Specification
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
