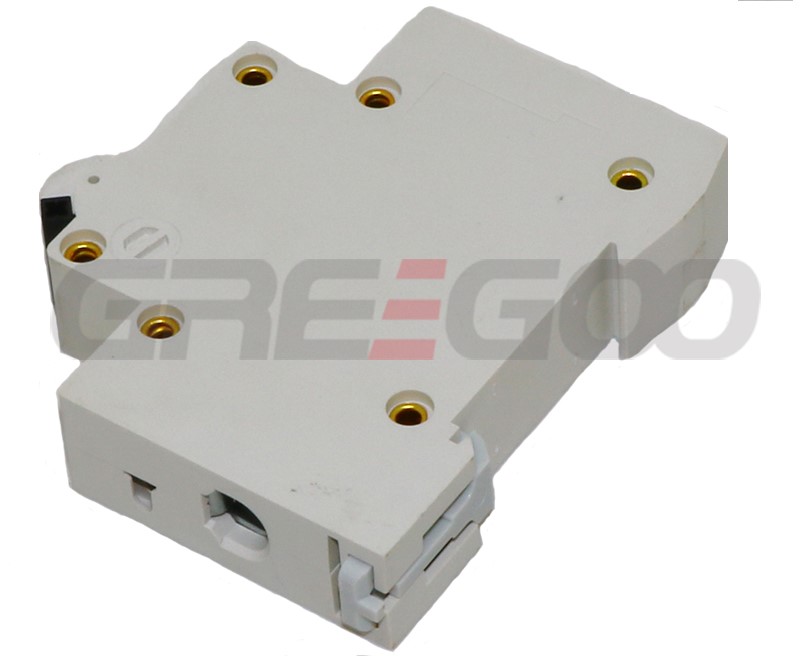

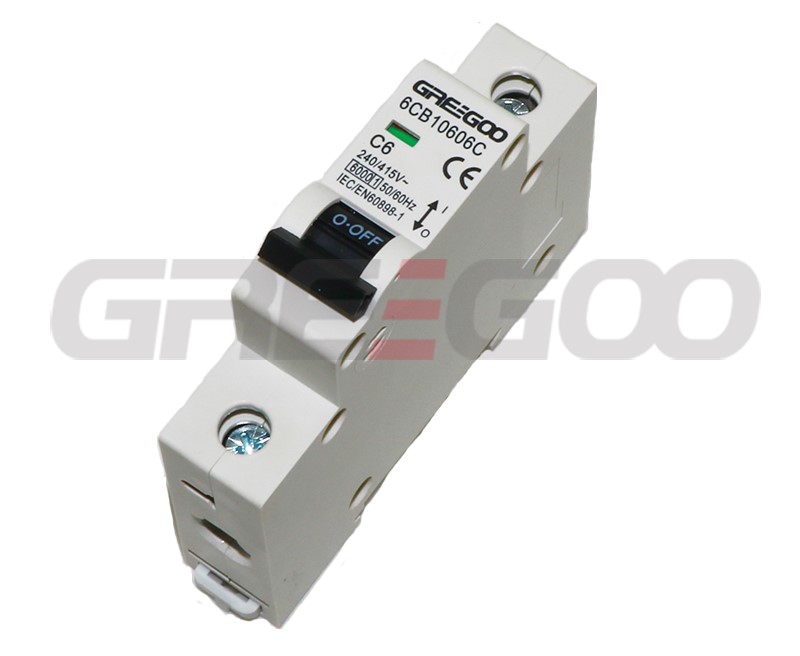

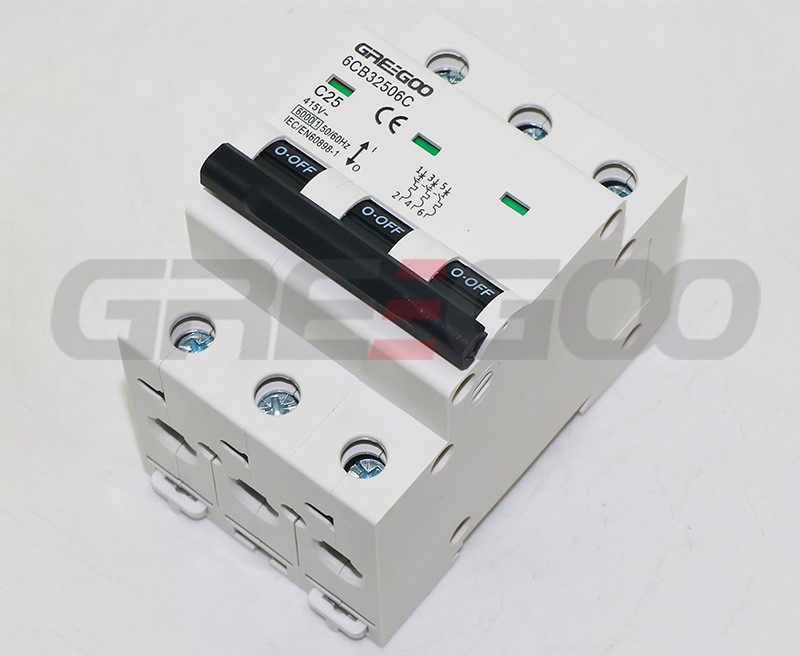

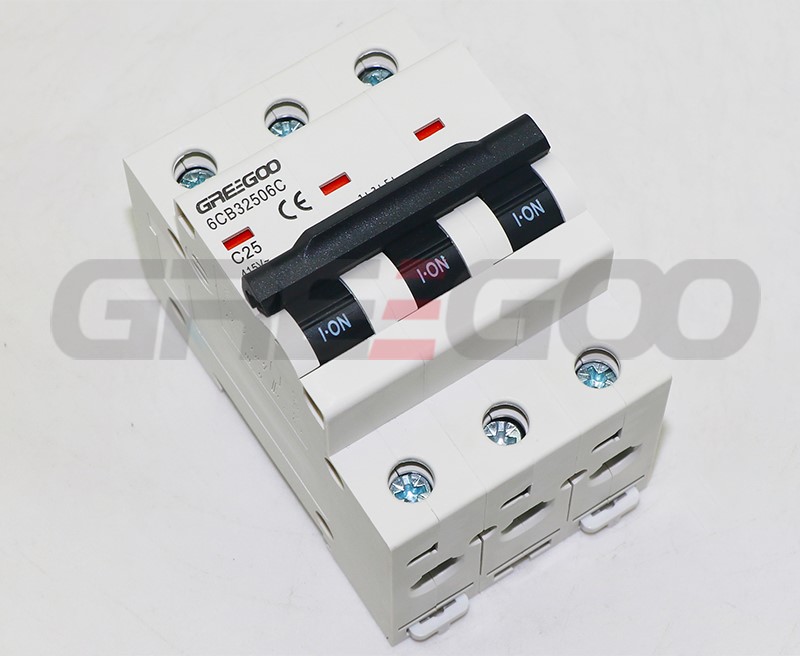

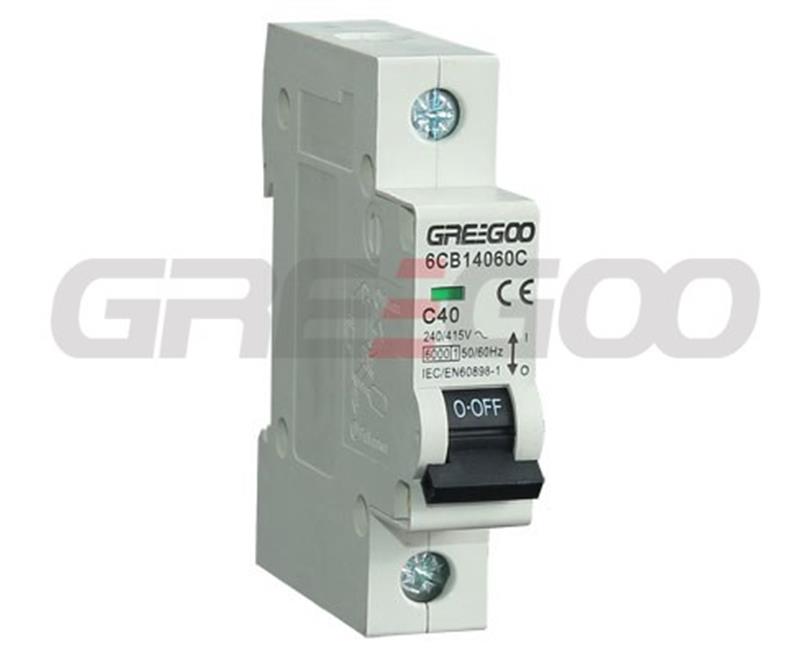

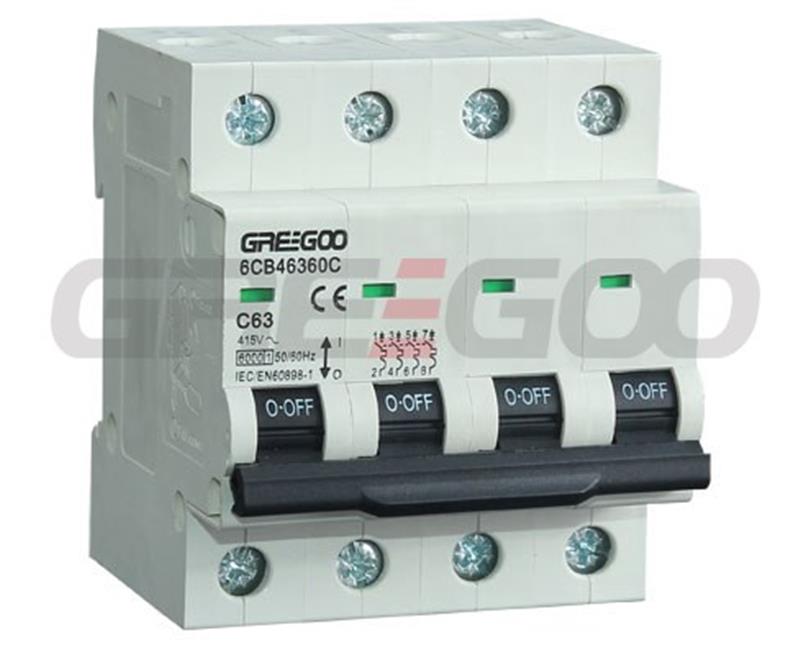

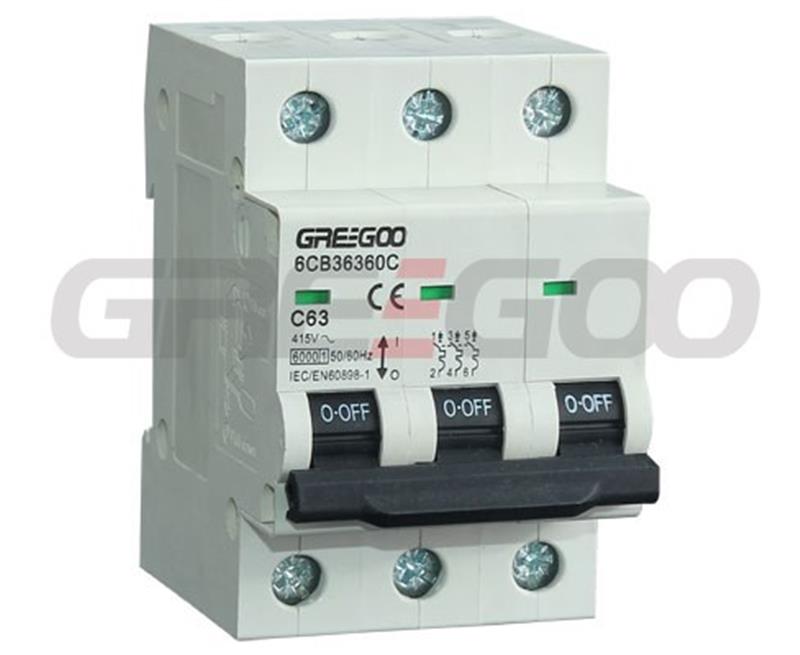

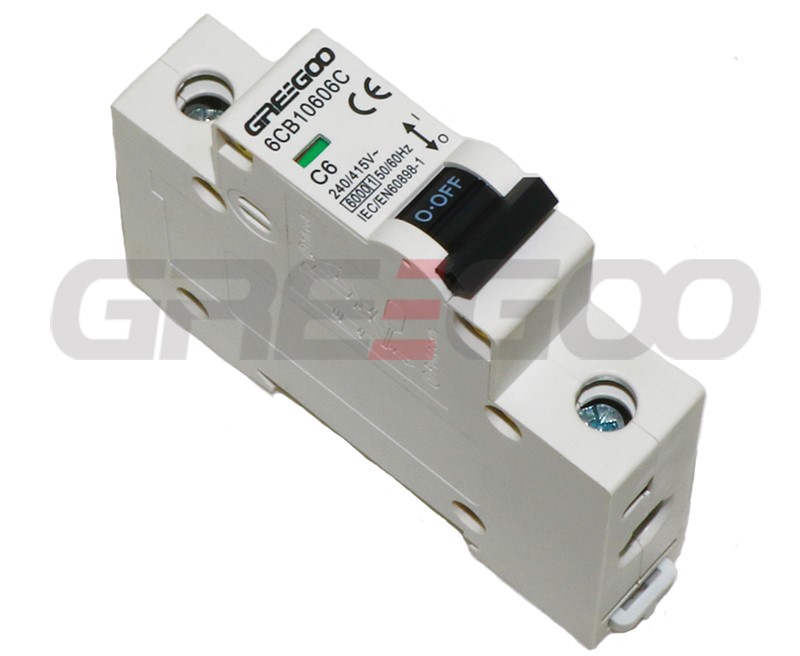

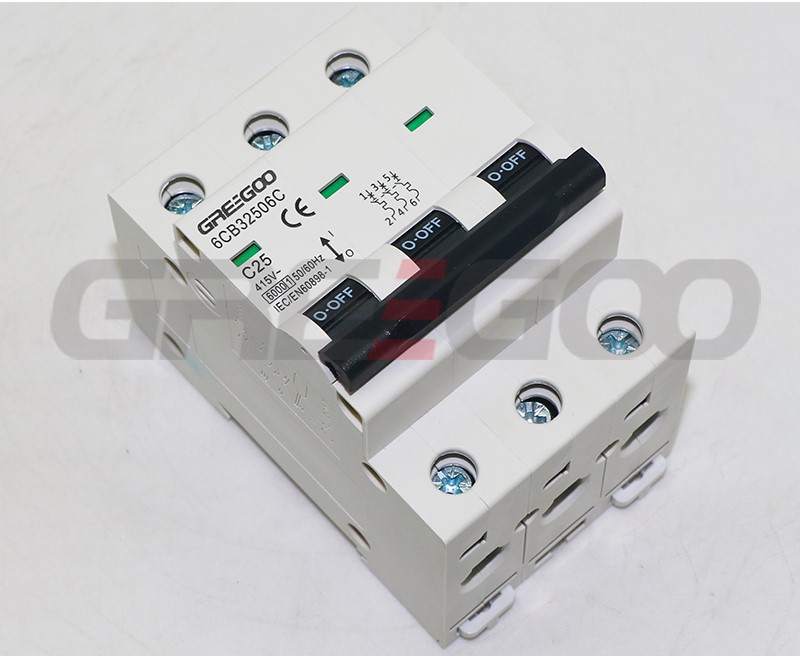

6CB series MCB is applicable to circuit with rated voltage up 415V AC, rated frequency 50/60Hz and rated current up to 63A for protection and control of circuit against overload and short circuit in commercial, household and electric equipment installation. The product is also suitable for non-frequently making and breaking operation.
Protection |
Overload and short circuit |
Standard conformity |
IEC:60898 |
Type/Series |
B |
C |
D |
Rated current(In) |
A |
6-63* |
6-63* |
6-63* |
Rated voltage(ac)(Ue) |
V |
240/415 |
240/415 |
240/415 |
Rated frequency(f) |
Hz |
50/60 |
50/60 |
50/60 |
Nos. of poles(Execution) |
1P,1P N,2P,3P,3P N,4P |
Rated short circuit breaking capacity |
kA |
3, 4.5, 6 |
3, 4.5, 6 |
3, 4.5, 6 |
Utilization category |
|
|
|
Magnetic release setting |
(3-5)In |
(5-10)In |
(10-20)In |
Rated insulation voltage(Ui) |
V |
660 |
660 |
660 |
Rated impulse voltage(Uimp) |
kV |
4 |
4 |
4 |
Electrical/Mechanical Endurance(no. of operations) |
Less than 32A |
|
20000 |
20000 |
20000 |
More than 32A |
|
10000 |
10000 |
10000 |
Ambient temperature |
℃ |
-5 to 55 |
-5 to 55 |
-5 to 55 |
Terminal capacity(max) |
sq.mm |
25 |
25 |
25 |
Protection class |
IP20 |
Installation postion |
Vertical/Horizontal |
Mounting |
Clip on DIN rail(35mm*7.5mm) |
Case & Cover |
Moulded, flame retardant thermoplastic meteria |
Current ratings-6,10,16,20,25,32,40,50,63. |
