3GBJ series three phase bridge rectifier
Home Products Diode Bridge RectifierMiniature Bridge Rectifier - Leaded type3GBJ series three phase bridge rectifier

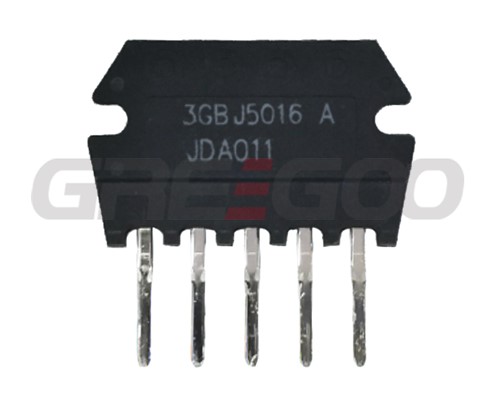

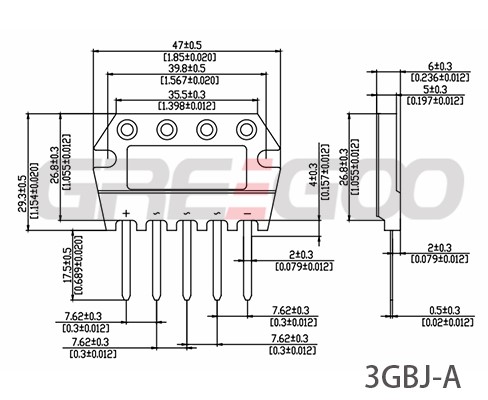

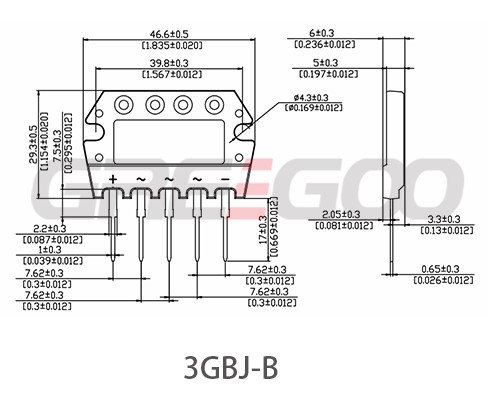

3GBJ series three phase bridge rectifier
|
TYPE |
Repetitive Peak Reverse Voltage |
Maximum Average
Rectified
Current
|
Maximum Forward Peak Surge Current |
Maximum Forward
Voltage
|
Maximum Reverse Current |
Junction Tempera ture |
Insulating
Voltage
|
|||
|
VRRM |
IF(AV)@Tc |
IFSM |
VF @IF |
IRRM @TA |
TJM |
VISO |
||||
|
(V) |
(A) |
(℃) |
(A) |
(V) |
(A) |
25℃(μA) |
125℃(μA) |
(℃) |
(V) |
|
|
3GBJ2510 B |
1000 |
25 |
85 |
400 |
1.1 |
12.5 |
5 |
500 |
150 |
2000 |
|
3GBJ2512 B |
1200 |
25 |
85 |
400 |
1.1 |
12.5 |
5 |
500 |
150 |
2000 |
|
3GBJ2514 B |
1400 |
25 |
85 |
400 |
1.1 |
12.5 |
5 |
500 |
150 |
2000 |
|
3GBJ2516 B |
1600 |
25 |
85 |
400 |
1.1 |
12.5 |
5 |
500 |
150 |
2000 |
|
3GBJ3510 B |
1000 |
35 |
85 |
450 |
1.1 |
17.5 |
5 |
500 |
150 |
2000 |
|
3GBJ3512 B |
1200 |
35 |
85 |
450 |
1.1 |
17.5 |
5 |
500 |
150 |
2000 |
|
3GBJ3514 B |
1400 |
35 |
85 |
450 |
1.1 |
17.5 |
5 |
500 |
150 |
2000 |
|
3GBJ3516 B |
1600 |
35 |
85 |
450 |
1.1 |
17.5 |
5 |
500 |
150 |
2000 |
|
TYPE |
Repetitive Peak Reverse Voltage |
Maximum Average |
Maximum Forward Peak Surge Current |
Maximum Forward |
Maximum Reverse Current |
Junction Tempera ture |
Insulating |
|||
|
VRRM |
IF(AV)@Tc |
IFSM |
VF @IF |
IRRM @TA |
TJM |
VISO |
||||
|
(V) |
(A) |
(℃) |
(A) |
(V) |
(A) |
25℃(μA) |
125℃(μA) |
(℃) |
(V) |
|
|
3GBJ3510 A |
1000 |
35 |
85 |
450 |
1.1 |
17.5 |
5 |
500 |
150 |
2000 |
|
3GBJ3512 A |
1200 |
35 |
85 |
450 |
1.1 |
17.5 |
5 |
500 |
150 |
2000 |
|
3GBJ3514 A |
1400 |
35 |
85 |
450 |
1.1 |
17.5 |
5 |
500 |
150 |
2000 |
|
3GBJ3516 A |
1600 |
35 |
85 |
450 |
1.1 |
17.5 |
5 |
500 |
150 |
2000 |
|
3GBJ5010 A |
1000 |
50 |
85 |
600 |
1.1 |
25 |
5 |
500 |
150 |
2000 |
|
3GBJ5012 A |
1200 |
50 |
85 |
600 |
1.1 |
25 |
5 |
500 |
150 |
2000 |
|
3GBJ5014 A |
1400 |
50 |
85 |
600 |
1.1 |
25 |
5 |
500 |
150 |
2000 |
|
3GBJ5016 A |
1600 |
50 |
85 |
600 |
1.1 |
25 |
5 |
500 |
150 |
2000 |
