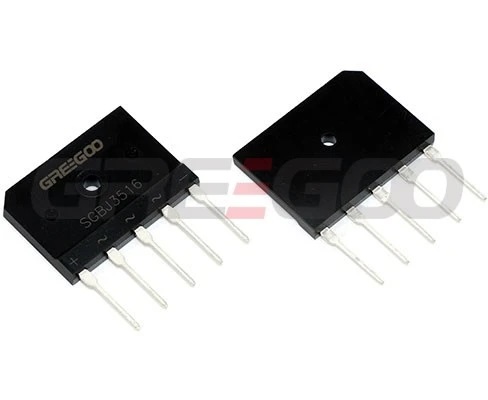

SGBJ series three phase bridge rectifier
|
TYPE |
Repetitive Peak Reverse Voltage |
Maximum |
Maximum |
Maximum Voltage |
Maximum Reverse Current |
Junction Tempera ture |
Insulating |
|||
|
VRRM |
IF(AV)@Tc |
IFSM |
VF @IF |
IRRM @TA |
TJM |
VIso |
||||
|
(V) |
(A) |
(℃) |
(A) |
(V) |
(A) |
25℃ |
125℃ (μA) |
(℃) |
(V) |
|
|
SGBJ3006 |
600 |
25 |
85 |
450 |
1.05 |
12.5 |
5 |
500 |
150 |
2500 |
|
SGBJ3008 |
800 |
25 |
85 |
450 |
1.05 |
12.5 |
5 |
500 |
150 |
2500 |
|
SGBJ3010 |
1000 |
25 |
85 |
450 |
1.05 |
12.5 |
5 |
500 |
150 |
2500 |
|
SGBJ3012 |
1200 |
25 |
85 |
450 |
1.05 |
12.5 |
5 |
500 |
150 |
2500 |
|
SGBJ3014 |
1400 |
25 |
85 |
450 |
1.05 |
12.5 |
5 |
500 |
150 |
2500 |
|
SGBJ3016 |
1600 |
25 |
85 |
450 |
1.05 |
12.5 |
5 |
500 |
150 |
2500 |
|
SGBJ3006 |
600 |
30 |
85 |
450 |
1.1 |
15 |
5 |
500 |
150 |
2500 |
|
SGBJ3008 |
800 |
30 |
85 |
450 |
1.1 |
15 |
5 |
500 |
150 |
2500 |
|
SGBJ3010 |
1000 |
30 |
85 |
450 |
1.1 |
15 |
5 |
500 |
150 |
2500 |
|
SGBJ3012 |
1200 |
30 |
85 |
450 |
1.1 |
15 |
5 |
500 |
150 |
2500 |
|
SGBJ3014 |
1400 |
30 |
85 |
450 |
1.1 |
15 |
5 |
500 |
150 |
2500 |
|
SGBJ3016 |
1600 |
30 |
85 |
450 |
1.1 |
15 |
5 |
500 |
150 |
2500 |
|
SGBJ3506 |
600 |
35 |
85 |
500 |
1.1 |
17.5 |
5 |
500 |
150 |
2500 |
|
SGBJ3508 |
800 |
35 |
85 |
500 |
1.1 |
17.5 |
5 |
500 |
150 |
2500 |
|
SGBJ3510 |
1000 |
35 |
85 |
500 |
1.1 |
17.5 |
5 |
500 |
150 |
2500 |
|
SGBJ3512 |
1200 |
35 |
85 |
450 |
1.1 |
17.5 |
5 |
500 |
150 |
2500 |
|
SGBJ3514 |
1400 |
35 |
85 |
450 |
1.1 |
17.5 |
5 |
500 |
150 |
2500 |
|
SGBJ3516 |
1600 |
35 |
85 |
450 |
1.1 |
17.5 |
5 |
500 |
150 |
2500 |
|
SGBJ5006 |
600 |
50 |
85 |
500 |
1.1 |
25 |
5 |
500 |
150 |
2500 |
|
SGBJ5008 |
800 |
50 |
85 |
500 |
1.1 |
25 |
5 |
500 |
150 |
2500 |
|
SGBJ5010 |
1000 |
50 |
85 |
500 |
1.1 |
25 |
5 |
500 |
150 |
2500 |
|
SGBJ5012 |
1200 |
50 |
85 |
500 |
1.1 |
25 |
5 |
500 |
150 |
2500 |
|
SGBJ5014 |
1400 |
50 |
85 |
500 |
1.1 |
25 |
5 |
500 |
150 |
2500 |
|
SGBJ5016 |
1600 |
50 |
85 |
500 |
1.1 |
25 |
5 |
500 |
150 |
2500 |
Need more information?
Contact us to request pricing, availability and customization options.
