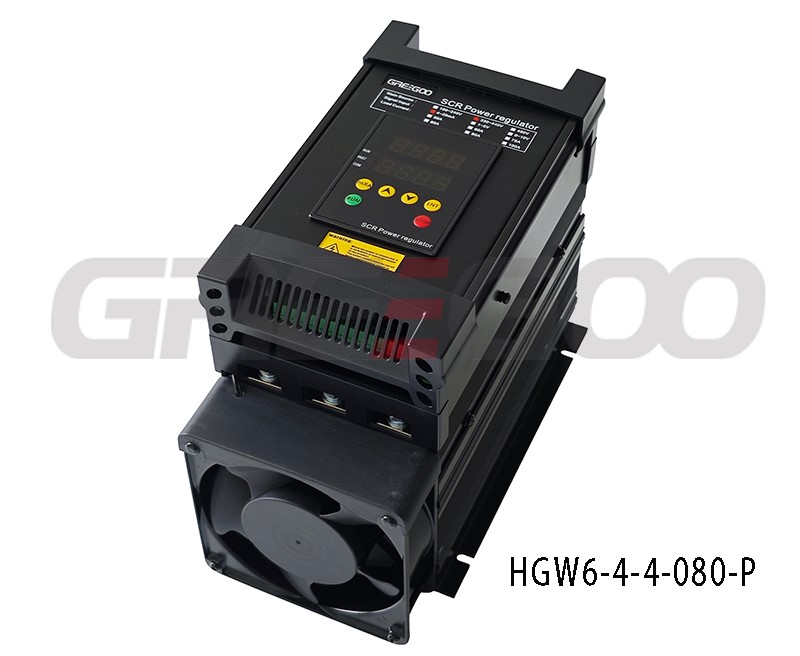

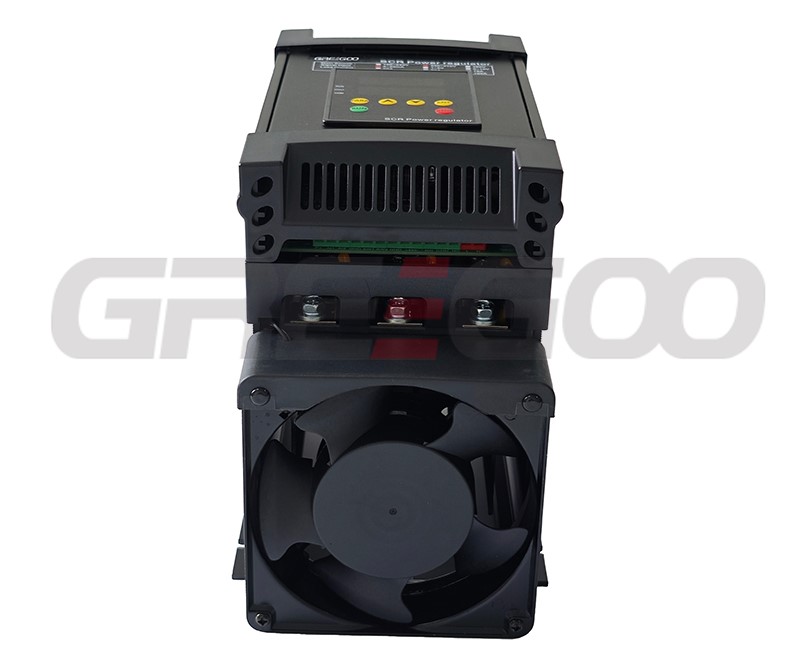

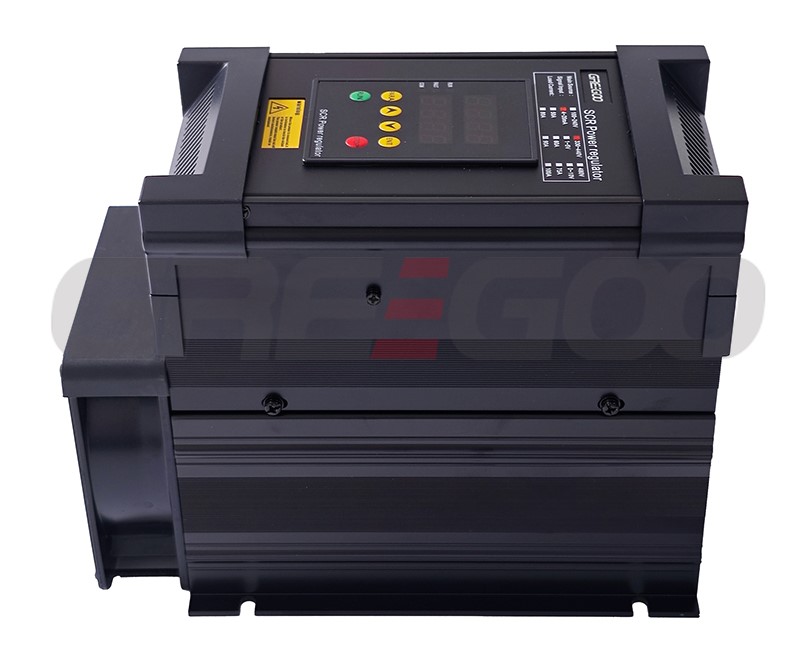

3 phase digital scr controller 50A to 80A
◎ Adopts 32-bit MCU dual-core control with PID closed-loop control for 100% linear output.
◎ Dual-row digital display with freely definable display of input, output, voltage, current, and power.
◎ Dual-channel input signal design with direct switching between current and voltage.
◎ Fast-acting fuse combined with transformer for dual overcurrent protection.
◎ Parameter storage and one-key reset function.
◎ MODBUS RTU communication.
| Model | Phase | Input Voltage | Rated Current |
Load Power(KW) | Weight (Kg) |
Control mode | Control signal | |
| 220V | 380V | |||||||
| HGW6-4-4-050-P | 3Ph | 380-440V | 50A | 15.5 | 27 | 3.5 | Phase angle (constant voltage limiting current) | 4-20mA/0-5V |
| HGW6-4-4-060-P | 3Ph | 380-440V | 60A | 19 | 33 | 3.5 | Phase angle (constant voltage limiting current) | 4-20mA/0-5V |
| HGW6-4-4-075-P | 3Ph | 380-440V | 75A | 23.5 | 41 | 3.5 | Phase angle (constant voltage limiting current) | 4-20mA/0-5V |
| HGW6-4-4-080-P | 3Ph | 380-440V | 80A | 25.5 | 44 | 3.5 | Phase angle (constant voltage limiting current) | 4-20mA/0-5V |
| HGW6-4-4-050-C | 3Ph | 380-440V | 50A | 15.5 | 27 | 3.5 | Phase angle constant current | 4-20mA/0-5V |
| HGW6-4-4-060-C | 3Ph | 380-440V | 60A | 19 | 33 | 3.5 | Phase angle constant current | 4-20mA/0-5V |
| HGW6-4-4-075-C | 3Ph | 380-440V | 75A | 23.5 | 41 | 3.5 | Phase angle constant current | 4-20mA/0-5V |
| HGW6-4-4-080-C | 3Ph | 380-440V | 80A | 25.5 | 44 | 3.5 | Phase angle constant current | 4-20mA/0-5V |
| HGW6-4-4-050-CV | 3Ph | 380-440V | 50A | 15.5 | 27 | 3.5 | Phase angle constant power | 4-20mA/0-5V |
| HGW6-4-4-060-CV | 3Ph | 380-440V | 60A | 19 | 33 | 3.5 | Phase angle constant power | 4-20mA/0-5V |
| HGW6-4-4-075-CV | 3Ph | 380-440V | 75A | 23.5 | 41 | 3.5 | Phase angle constant power | 4-20mA/0-5V |
| HGW6-4-4-080-CV | 3Ph | 380-440V | 80A | 25.5 | 44 | 3.5 | Phase angle constant power | 4-20mA/0-5V |
| HGW6-4-4-050-Z | 3Ph | 380-440V | 50A | 15.5 | 27 | 3.5 | Zero crossing cycle power regulating | 4-20mA/0-5V |
| HGW6-4-4-060-Z | 3Ph | 380-440V | 60A | 19 | 33 | 3.5 | Zero crossing cycle power regulating | 4-20mA/0-5V |
| HGW6-4-4-075-Z | 3Ph | 380-440V | 75A | 23.5 | 41 | 3.5 | Zero crossing cycle power regulating | 4-20mA/0-5V |
| HGW6-4-4-080-Z | 3Ph | 380-440V | 80A | 25.5 | 44 | 3.5 | Zero crossing cycle power regulating | 4-20mA/0-5V |
| HGW6-4-2-050-P | 3Ph | 110-220V | 50A | 15.5 | 27 | 3.5 | Phase angle (constant voltage limiting current) | 4-20mA/0-5V |
| HGW6-4-2-060-P | 3Ph | 110-220V | 60A | 19 | 33 | 3.5 | Phase angle (constant voltage limiting current) | 4-20mA/0-5V |
| HGW6-4-2-075-P | 3Ph | 110-220V | 75A | 23.5 | 41 | 3.5 | Phase angle (constant voltage limiting current) | 4-20mA/0-5V |
| HGW6-4-2-080-P | 3Ph | 110-220V | 80A | 25.5 | 44 | 3.5 | Phase angle (constant voltage limiting current) | 4-20mA/0-5V |
| HGW6-4-2-050-C | 3Ph | 110-220V | 50A | 15.5 | 27 | 3.5 | Phase angle constant current | 4-20mA/0-5V |
| HGW6-4-2-060-C | 3Ph | 110-220V | 60A | 19 | 33 | 3.5 | Phase angle constant current | 4-20mA/0-5V |
| HGW6-4-2-075-C | 3Ph | 110-220V | 75A | 23.5 | 41 | 3.5 | Phase angle constant current | 4-20mA/0-5V |
| HGW6-4-2-080-C | 3Ph | 110-220V | 80A | 25.5 | 44 | 3.5 | Phase angle constant current | 4-20mA/0-5V |
| HGW6-4-2-050-CV | 3Ph | 110-220V | 50A | 15.5 | 27 | 3.5 | Phase angle constant power | 4-20mA/0-5V |
| HGW6-4-2-060-CV | 3Ph | 110-220V | 60A | 19 | 33 | 3.5 | Phase angle constant power | 4-20mA/0-5V |
| HGW6-4-2-075-CV | 3Ph | 110-220V | 75A | 23.5 | 41 | 3.5 | Phase angle constant power | 4-20mA/0-5V |
| HGW6-4-2-080-CV | 3Ph | 110-220V | 80A | 25.5 | 44 | 3.5 | Phase angle constant power | 4-20mA/0-5V |
| HGW6-4-2-050-Z | 3Ph | 110-220V | 50A | 15.5 | 27 | 3.5 | Zero crossing cycle power regulating | 4-20mA/0-5V |
| HGW6-4-2-060-Z | 3Ph | 110-220V | 60A | 19 | 33 | 3.5 | Zero crossing cycle power regulating | 4-20mA/0-5V |
| HGW6-4-2-075-Z | 3Ph | 110-220V | 75A | 23.5 | 41 | 3.5 | Zero crossing cycle power regulating | 4-20mA/0-5V |
| HGW6-4-2-080-Z | 3Ph | 110-220V | 80A | 25.5 | 44 | 3.5 | Zero crossing cycle power regulating | 4-20mA/0-5V |
