Rectifier Diodes (Free Floating Type)

Rectifier diodes are generally used for conversion of AC (alternating current) to DC (direct current). Standard recovery diodes are optimized with respect to low conduction losses and are able to handle very large currents.

Application:

- Locomotive traction and drive
- Hiht Voltage Direct Current Transmission(HVDC)
- SVC
- High current power source
- Eletric motor soft starter
- Industrial drive
- Motor excitation

- Induction heating

Type= VRRM/100	IF(AV)		VDSMVRSM	VDRMVRRM	ITSM@ TVJM &10ms	VTM@ITM &TC=TVJM		VTO@ TVJM	rT@ TVJM	TVJM	RthJC	RthCH	F±10%	Outline
		@Tc	VDSMVRSM	VDRMVRRM	ITSM@ TVJM &10ms	VTM@ITM &TC=TVJM		VTO@ TVJM	rT@ TVJM	TVJM	RthJC	RthCH	F±10%
	A	oC	V	V	kA	A	V	V	mΩ	oC	K/W	K/W	kN
UP to 2200V
D812-6700	6730	90	1600-2200	1600-2200	78	6000	1.09	0.82	0.045	175	0.007	0.002	70	84/120/26
D816-7500	7570	90	1600-2200	1600-2200	94	6000	1.03	0.82	0.035	160	0.0057	0.002	90	100/150/35
D814-10000	10000	85	1600-2200	1600-2200	125	6000	0.98	0.77	0.035	160	0.004	0.001	120	110/172/35
UP to 3400V
D812-5500	5510	90	2400-3400	2400-3400	64.2	6000	1.29	0.8	0.082	175	0.007	0.002	70	84/120/26
D816-6800	6800	90	2400-3400	2400-3400	84.4	6000	1.17	0.75	0.07	160	0.0057	0.002	90	100/150/35
D814-9000	9000	85	2400-3400	2400-3400	118	6000	1.06	0.72	0.057	160	0.004	0.001	120	110/172/35
UP to 4500V
D812-4600	4630	90	3600-4500	3600-4500	59.4	6000	1.5	0.98	0.086	160	0.007	0.002	70	84/120/26
D816-5600	5600	90	3600-4500	3600-4500	79	6000	1.32	0.8	0.086	160	0.0057	0.002	90	100/150/35
D814-6200	6280	100	3600-4500	3600-4500	99.4	6000	1.19	0.8	0.065	150	0.004	0.001	120	110/172/35
UP to 5500V

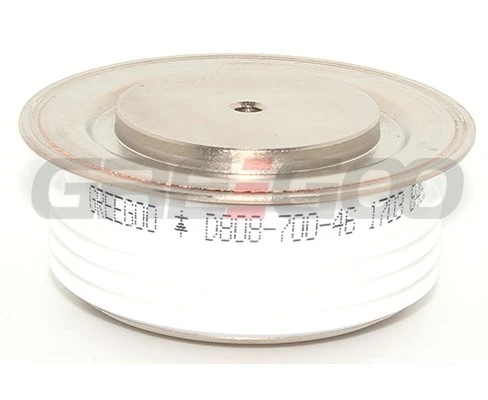

D808-700	770	90	4600-5500	4600-5500	11.7	1000	1.38	0.89	0.487	160	0.045	0.008	15	34/58/35
D809-1400	1460	90	4600-5500	4600-5500	24	1000	1.22	0.94	0.284	160	0.022	0.005	22	47/75/35
D811-2000	2040	90	4600-5500	4600-5500	28.8	3000	1.62	0.96	0.22	160	0.015	0.004	45	63/100/35
D822-2500	2580	90	4600-5500	4600-5500	35	3000	1.59	1	0.195	160	0.011	0.003	50	63/102/35
D812-3400	3450	90	4600-5500	4600-5500	51.7	3000	1.31	0.9	0.135	160	0.009	0.002	70	78/120/35
D816-4700	4710	100	4600-5500	4600-5500	74	6000	1.44	0.82	0.104	160	0.0057	0.002	90	100/150/35
D814-5900	5930	100	4600-5500	4600-5500	93.6	6000	1.26	0.8	0.076	150	0.004	0.001	120	110/172/35
UP to 6500V
D808-500	500	100	5400-6500	4900-6000	9.1	1000	1.84	0.92	0.92	150	0.045	0.008	15	34/58/35
D809-900	970	100	5400-6500	4900-6000	16.5	1000	1.5	1.05	0.45	150	0.022	0.005	22	47/75/35
D811-1400	1470	100	5400-6500	4900-6000	25.7	3000	1.87	1	0.29	150	0.015	0.004	45	63/100/35
D822-1900	1950	100	5400-6500	4900-6000	33	3000	1.69	1	0.23	150	0.011	0.003	50	63/102/35
D812-2400	2470	100	5400-6500	4900-6000	47.2	3000	1.59	1.15	0.145	150	0.009	0.002	70	78/120/35
D816-3600	3640	100	5400-6500	4900-6000	56.6	6000	1.84	1.15	0.115	150	0.0057	0.002	90	100/150/35
D814-5100	5150	100	5400-6500	4900-6000	82.5	6000	1.65	1.15	0.083	150	0.004	0.001	120	110/172/35
UP to 8500V
D814-4900	4940	100	6600-7200	6100-6700	79	6000	1.71	1.15	0.094	150	0.004	0.001	120	110/172/35
D814-4600	4690	100	7400-8500	6900-8000	74.5	6000	1.81	1.15	0.11	150	0.004	0.001	120	110/172/35
