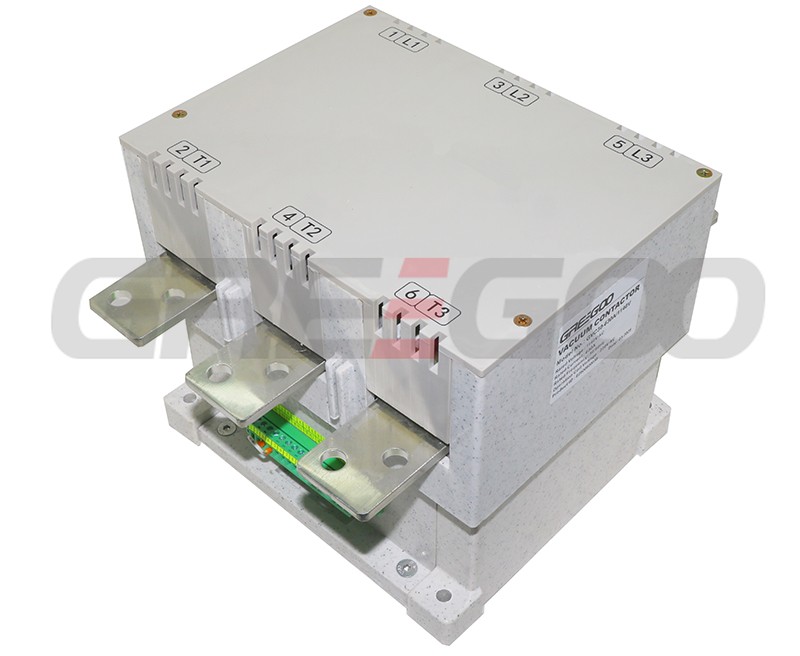

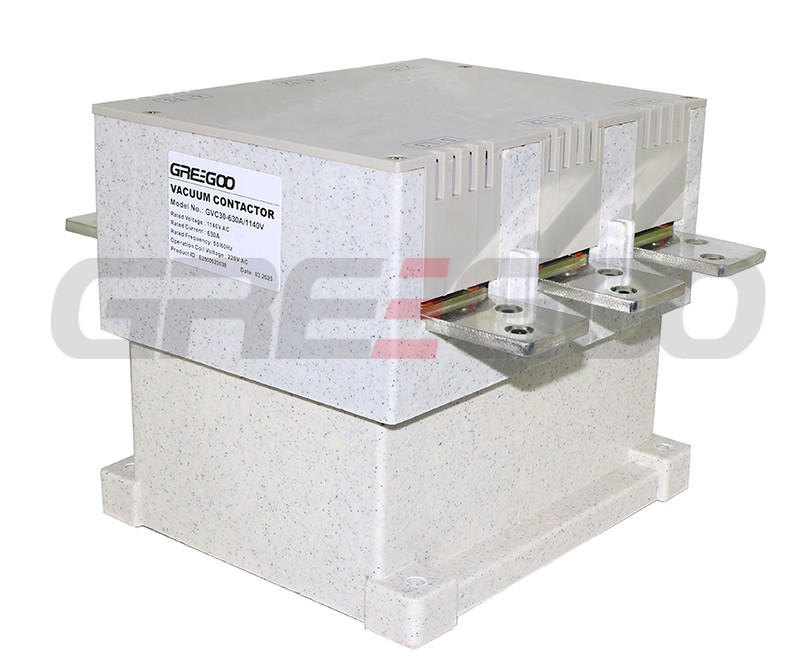

Fast switching low voltage vacuum contactor

• Main Circuit Rated Voltage Ua: Can be AC/DC 110V, 220V, 380V or customized according to user requirements.
• Control Power: The starting power of the electric protection device is less than 2000W, and the holding power is less than 50W.
• Auxiliary Circuit Quantity: 3NC 3NO as standard, and if an electronic module control method is used, there can be 4NO 3NC.
• Auxiliary Contact Conventional Heating Current: 6A at AC380V; 10A at AC220V.
• Auxiliary Contact Rated Make and Break Current: 1A at AC380V, 2A at AC220V, 0.1A at DC220V.
• Power-Frequency Withstand Voltage: The main circuit can withstand a power-frequency withstand voltage of 2KV, excluding components.
• Operating Characteristics Closing and Opening Time: Closing time does not exceed 60ms; opening time does not exceed 60ms.
• Three-Phase Synchronism: The synchronization error does not exceed 2ms.
• Minimum Pull-in Voltage: Not less than 85% of the rated voltage; maximum release voltage is between 10% and 75% of the rated voltage.

Main Circuit

• The product features an integrated frame structure that ensures insulation while providing sufficient mechanical strength. The insulation withstands voltage levels up to 3kV.
• The vacuum switch tube uses products from well-known domestic manufacturers with mature technology, reliable quality, and a good market reputation.
• The conductive busbar is designed to be aesthetically pleasing and durable, with two center distance options available to accommodate different user needs.

Electromagnetic System

• Utilizes a novel, fully sealed auxiliary switch, significantly improving the reliability and safety of the auxiliary switch.
• The optimized action structure reduces the coil's starting and holding power, thus lowering temperature rise, extending lifespan, and enhancing reliability.
• The actuator head of the auxiliary switch also employs buffering to reduce the impact force, thereby increasing the reliability of the auxiliary switch.

Action Structure

• The pivot support is designed to be flexible, with no sticking and minimal axial play, improving performance and consistency.
• A reasonable action mechanism ensures the coaxial movement of the vacuum tube's moving conductive rod, enhancing the performance and reliability of the contactor. The three-phase synchronicity and bounce characteristics are superior to similar products on the market.
• Enhanced contact pressure in the main contacts improves electrical performance and operational characteristics, surpassing similar products.



Ease of Use and Maintenance

• The control circuit and auxiliary contacts are connected to wiring terminals, and each terminal is clearly marked with its function to avoid incorrect wiring, making it user-friendly and easy to maintain.

• Ambient Temperature: The highest surrounding air temperature should not exceed 40°C, and the 24-hour average should not exceed 35°C, with a minimum not lower than -15°C.
• Altitude: The installation site's altitude should not exceed 2000 meters.
• Relative Humidity: The relative humidity of the atmosphere should not exceed 50% when the surrounding air temperature is 40°C.
• Working Environment: There should be no exposure to rain, snow, open flames, explosive hazards, chemical corrosion, or intense vibrations.
• Installation Conditions: The installation surface should not be tilted more than 5 degrees from the horizontal or vertical plane.
• Pollution Level: Level III.
