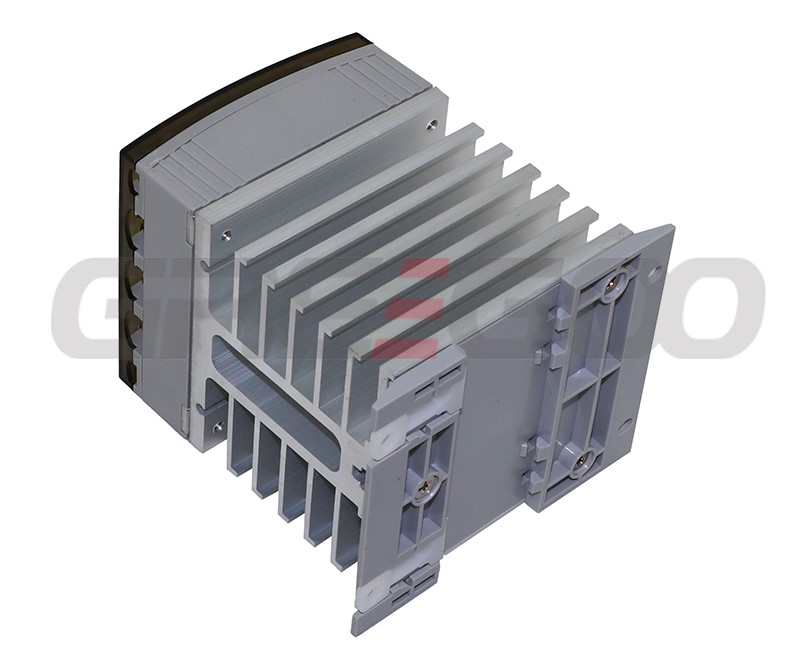

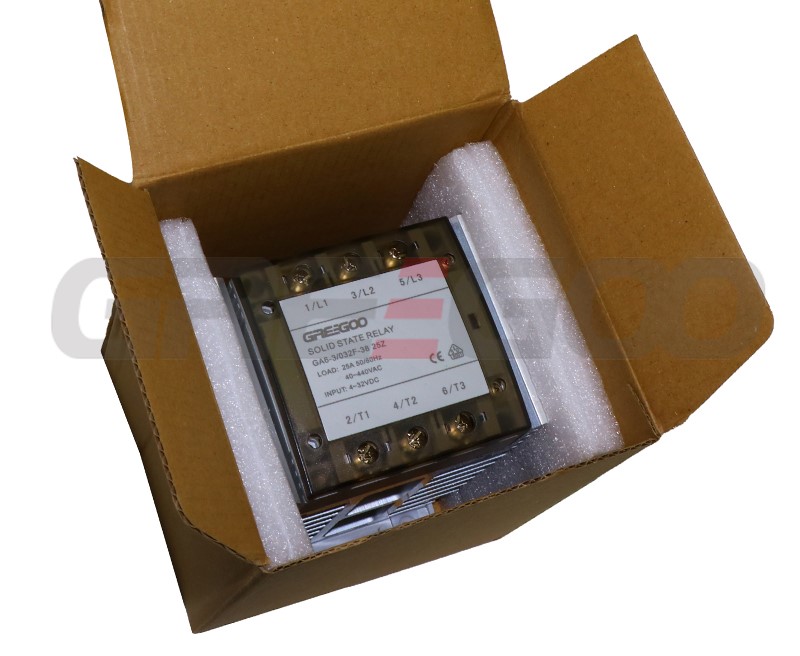

Three phase solid state relay with heatsink
Air cooled solid state relay assemblies, 3 phase, heatsink combined SSR.
| Model No. | Control Voltage | Load Voltage | Rated Current | Heatsink | Dimensions |
| GA6-3/032F-3810Z | 4-32VDC | 40-440VAC | 10A | HH-055 | 100X80X110 |
| GA6-3/032F-3815Z | 4-32VDC | 40-440VAC | 15A | HH-055 | 100X80X110 |
| GA6-3/032F-3820Z | 4-32VDC | 40-440VAC | 20A | HH-057 | 100X110X127 |

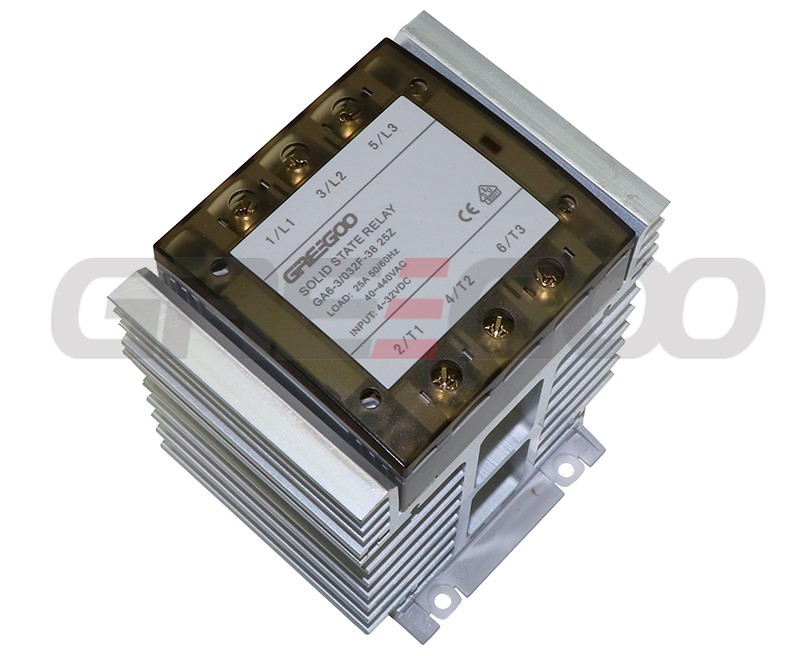

| GA6-3/032F-3825Z | 4-32VDC | 40-440VAC | 25A | HH-057 | 100X110X127 |
| GA6-3/032F-3830Z | 4-32VDC | 40-440VAC | 30A | HH-057 | 100X110X127 |

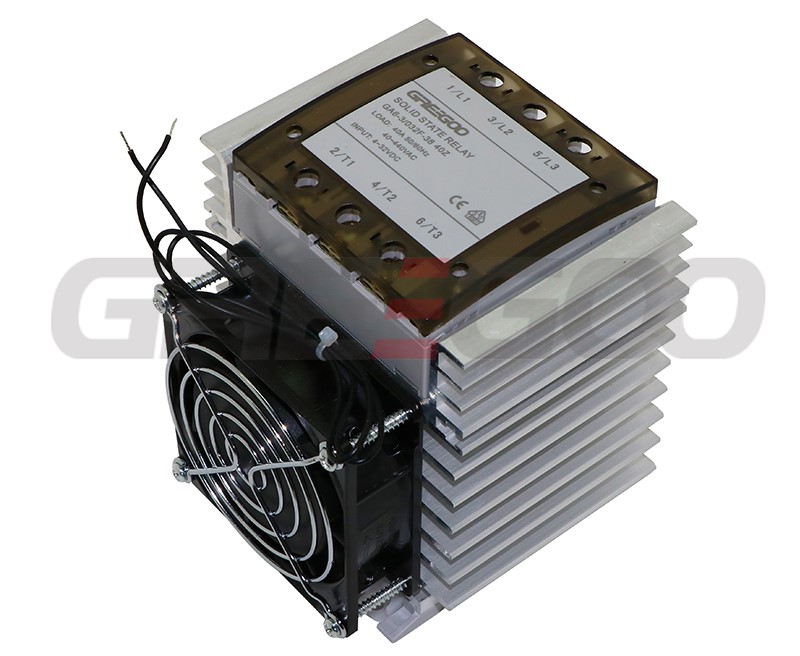

| GA6-3/032F-3840Z | 4-32VDC | 40-440VAC | 40A | HH-057F | 125X110X127 |
| GA6-3/250F-3810Z | 90-250VAC | 40-440VAC | 10A | HH-055 | 100X80X110 |
| GA6-3/250F-3815Z | 90-250VAC | 40-440VAC | 15A | HH-055 | 100X80X110 |
| GA6-3/250F-3820Z | 90-250VAC | 40-440VAC | 20A | HH-057 | 100X110X127 |
| GA6-3/250F-3825Z | 90-250VAC | 40-440VAC | 25A | HH-057 | 100X110X127 |
| GA6-3/250F-3830Z | 90-250VAC | 40-440VAC | 30A | HH-057 | 100X110X127 |
| GA6-3/250F-3840Z | 90-250VAC | 40-440VAC | 40A | HH-057F | 125X110X127 |
Need more information?
Contact us to request pricing, availability and customization options.
