Rotating Diode ZX150-12

Home Products Stud Semiconductor DeviceMore of stud devicesRotating Diode ZX150-12

Product details

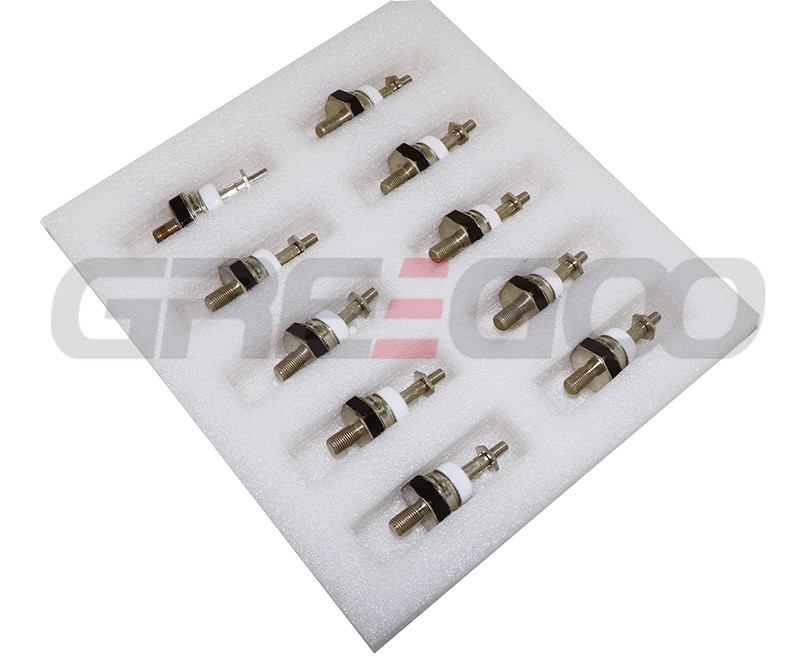

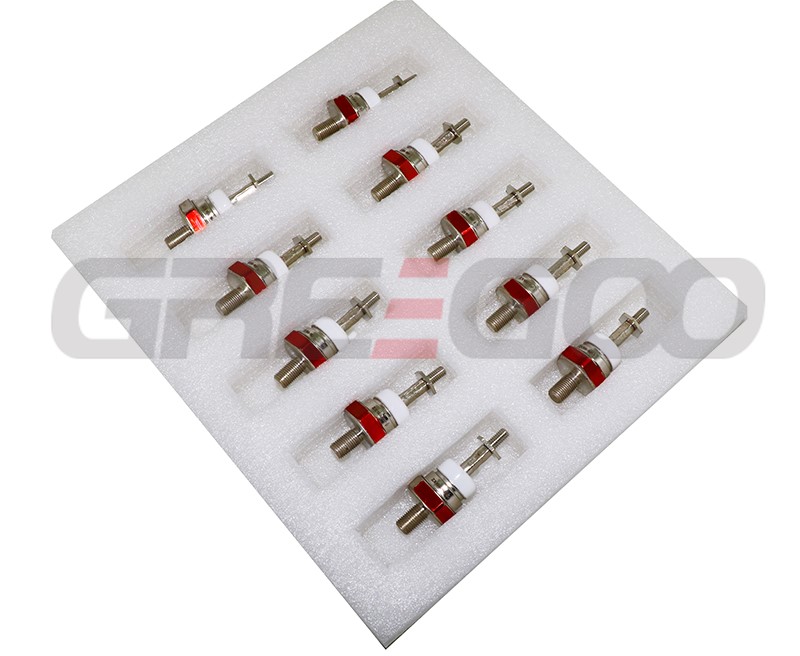

Rotating Diode ZX150-12

Features
Bolted and terminal block structure, strong adaptability.
Excellent high-temperature working capability.
Compact size, lightweight, high reliability

Applications
Backup generator equipment.
Mobile power supply units.
Industrial power equipment

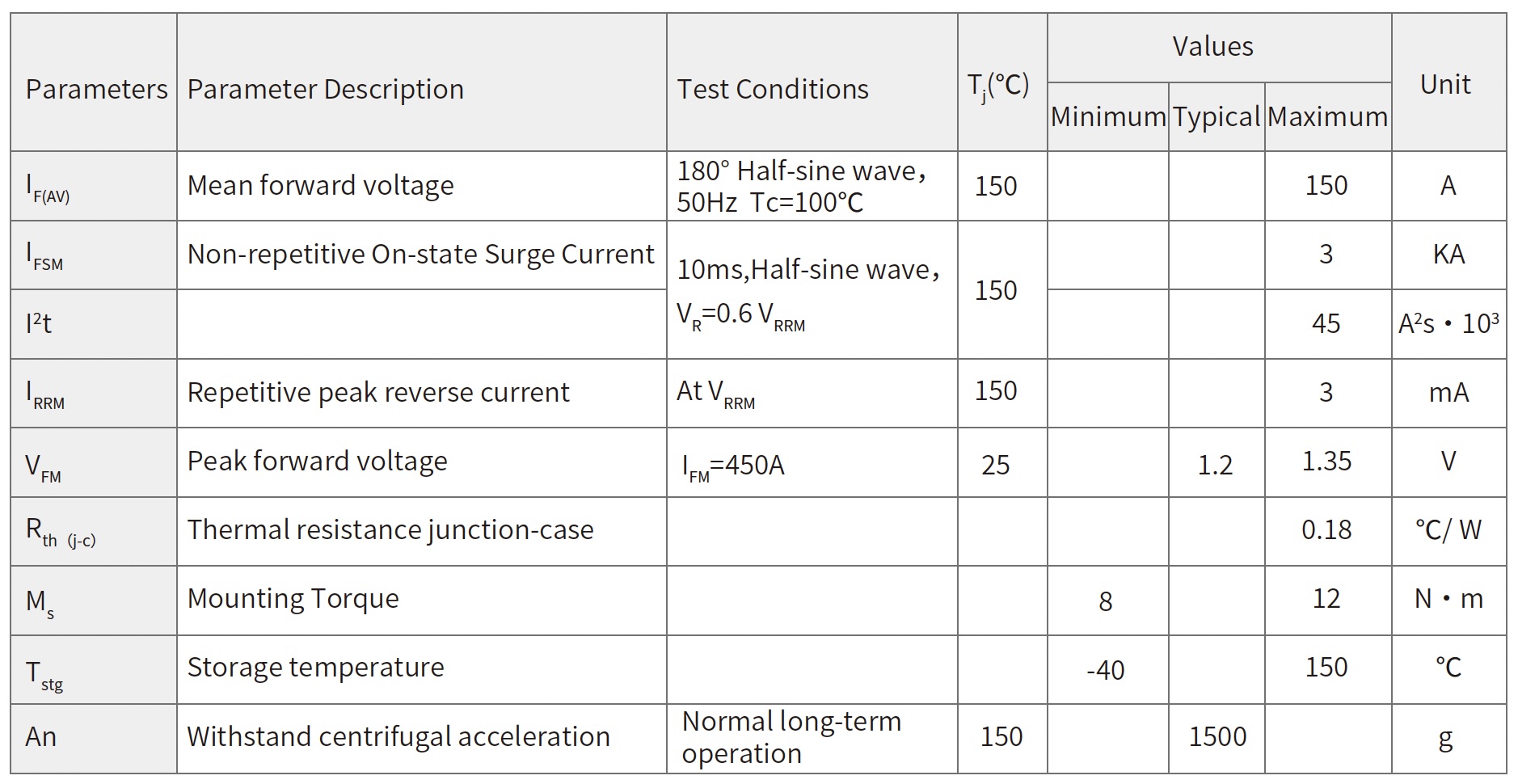

Technial parameters

150A 1200V rotor diode

FAQ

Q:What is a Rotating Diode?

A rotating diode is a special type of rectifier diode used in the brushless excitation system of synchronous generators (alternators). It is mounted on the rotating part of the machine (rotor) and plays a crucial role in converting AC (alternating current) to DC (direct current) to provide stable excitation to the generator's main field winding.

Download

Rotating Diode ZX300 300A 1000V (PDF)Rotating Diode ZX200 200A 1000V (PDF)Rotating Diode ZX150 150A 1200V (PDF)
