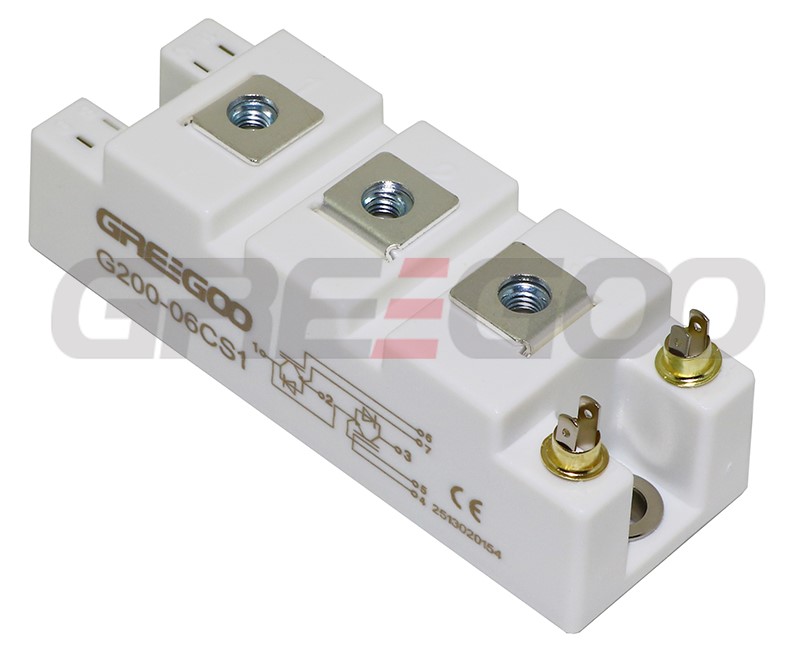

600V/650V IGBT Modules
Greegoo offers IGBT (insulated-gate bipolar transistor) modules in different topologies, current and voltage ratings. Starting from 15A to 1600A in voltage classes from 600V to 1700V, the IGBT modules are used in a variety of applications and feature key technologies such as sintering, spring or press-fit contacts for quick and easy assembly. Different topologies such as CIB (converter inverter brake), half-bridge, H-bridge, 6-pack and 3-level are available, covering almost every application field. Such as inverter welding machine; inverter power supply, frequency converter, UPS; electric vehicle; photovoltaic inverter, industrial servo service; switched reluctance motor, chopper speed regulation; induction heating, etc.

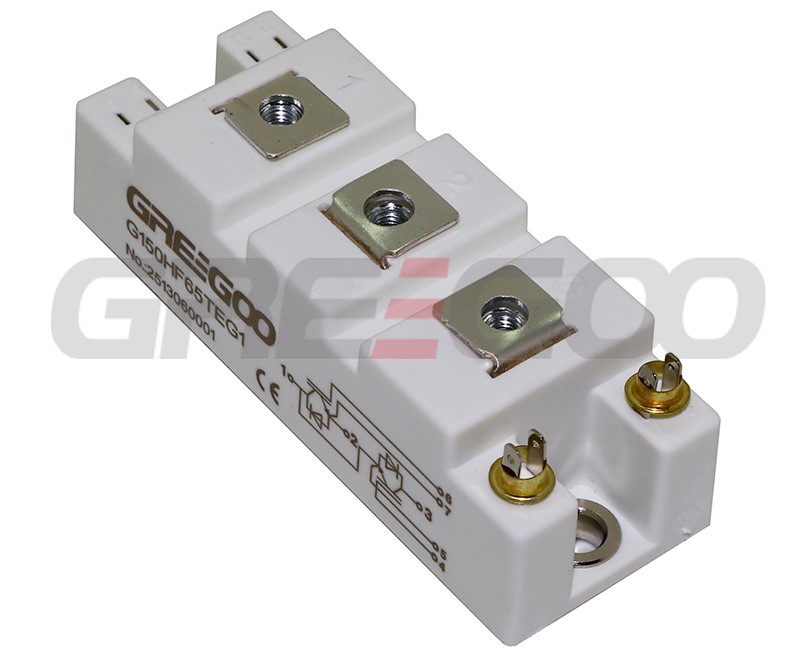

| Type | VCES | IC | VCE(sat) | E(on off) | Rth(J-C) | Packages |
| Tc=25℃ | Tc=80℃ | Tj=25℃ | Tj=125℃ | |||
| (V) | (A) | (V) | (mJ) | (K/W) | ||
| G100SG60TK-F4 | 600 | 100 | 1.9 | 3.70 | 0.20 | F4 |
| G600SG60TE-G3 | 600 | 600 | 1.7 | 32.50 | 0.25 | G3 |
| G800SG60TE-G3 | 600 | 800 | 1.7 | 38.00 | 0.25 | G3 |
| G600SG60TK-G3 | 600 | 600 | 1.9 | 25.00 | 0.10 | G3 |
| G800SG60TK-G3 | 600 | 800 | 1.9 | 32.90 | 0.08 | G3 |
| G50HF60TE-G1 | 600 | 50 | 1.7 | 2.00 | 0.47 | G1 |
| G75HF60TE-G1 | 600 | 75 | 1.7 | 6.00 | 0.60 | G1 |
| G100HF60TE-G1 | 600 | 100 | 1.7 | 9.00 | 0.45 | G1 |
| G150HF60TE-G1 | 600 | 150 | 1.7 | 14.00 | 0.30 | G1 |
| G200HF60TE-G1 | 600 | 200 | 1.7 | 19.00 | 0.25 | G1 |
| G300HF60TE-G2 | 600 | 300 | 1.7 | 32.50 | 0.25 | G2 |
| G400HF60TE-G2 | 600 | 400 | 1.7 | 38.00 | 0.25 | G2 |
| G50HF60TK-G1 | 600 | 50 | 1.9 | 3.00 | 0.25 | G1 |
| G75HF60TK-G1 | 600 | 75 | 1.9 | 4.50 | 0.21 | G1 |
| G100HF60TK-G1 | 600 | 100 | 1.9 | 7.00 | 0.17 | G1 |
| G150HF60TK-G1 | 600 | 150 | 1.9 | 11.50 | 0.14 | G1 |
| G200HF60TK-G1 | 600 | 200 | 1.9 | 16.40 | 0.12 | G1 |
| G300HF60TK-G2 | 600 | 300 | 1.9 | 25.00 | 0.10 | G2 |
| G400HF60TK-G2 | 600 | 400 | 1.9 | 32.90 | 0.08 | G2 |
| G450HF60TE-G8 | 650 | 450 | 1.7 | 45.00 | 0.09 | G8 |
| G600HF60TE-G8 | 650 | 600 | 1.7 | 57.00 | 0.07 | G8 |
| G20FF60TE-E1 | 600 | 20 | 1.7 | 1.20 | 1.27 | E1-FF |
| G30FF60TE-E1 | 600 | 30 | 1.7 | 1.80 | 0.85 | E1-FF |
| G50FF60TE-E1 | 600 | 50 | 1.7 | 2.70 | 0.75 | E1-FF |
| G20FF60TK-E1 | 600 | 20 | 1.9 | 1.00 | 0.06 | E1-FF |
| G30FF60TK-E1 | 600 | 30 | 1.9 | 1.50 | 0.71 | E1-FF |
| G50FF60TK-E1 | 600 | 50 | 1.9 | 3.00 | 0.65 | E1-FF |
| G20PI60TE-E1 | 600 | 20 | 1.7 | 1.20 | 0.98 | E1-PI |
| G30PI60TE-E1 | 600 | 30 | 1.7 | 1.80 | 0.55 | E1-PI |
| G50PI60TE-E2 | 600 | 50 | 1.7 | 2.70 | 0.39 | E2-PI |
| G20PI60TK-E1 | 600 | 20 | 1.9 | 1.07 | 0.76 | E1-PI |
| G30PI60TK-E1 | 600 | 30 | 1.9 | 1.50 | 0.42 | E1-PI |
| G50PI60TK-E2 | 600 | 50 | 1.9 | 3.00 | 0.39 | E2-PI |
| G50FF60TE-G4 | 600 | 50 | 1.7 | 2.30 | 0.50 | G4-FF |
| G75FF60TE-G4 | 600 | 75 | 1.7 | 5.90 | 0.38 | G4-FF |
| G100FF60TE-G4 | 600 | 100 | 1.7 | 9.00 | 0.30 | G4-FF |
| G100FF60TE-G5 | 600 | 100 | 1.7 | 9.00 | 0.30 | G5-FF |
| G150FF60TE-G5 | 650 | 150 | 1.7 | 14.30 | 0.24 | G5-FF |
| G200FF60TE-G5 | 650 | 200 | 1.7 | 19.50 | 0.19 | G5-FF |
| G50FF60TK-G4 | 600 | 50 | 1.9 | 3.10 | 0.62 | G4-FF |
| G75FF60TK-G4 | 600 | 75 | 1.9 | 4.52 | 0.50 | G4-FF |
| G100FF60TK-G5 | 600 | 100 | 1.9 | 7.00 | 0.38 | G5-FF |
| G150FF60TK-G5 | 600 | 150 | 1.9 | 11.60 | 0.28 | G5-FF |
| G200FF60TK-G5 | 600 | 200 | 1.9 | 16.50 | 0.24 | G5-FF |
| G50PI60TE-G4 | 600 | 50 | 1.7 | 2.70 | 0.93 | G4-PI |
| G75PI60TE-G4 | 600 | 75 | 1.7 | 6.00 | 0.60 | G4-PI |
| G100PI60TE-G5 | 600 | 100 | 1.7 | 13.60 | 0.45 | G5-PI |
| G150PI60TE-G5 | 600 | 150 | 1.7 | 25.00 | 0.36 | G5-PI |
| G50PI60TK-G4 | 600 | 50 | 1.9 | 3.15 | 0.55 | G4-PI |
| G50PI60TK-G5 | 600 | 50 | 1.9 | 3.15 | 0.55 | G5-PI |
| G75PI60TK-G5 | 600 | 75 | 1.9 | 4.50 | 0.40 | G5-PI |
| G100PI60TK-G5 | 600 | 100 | 1.9 | 7.10 | 0.30 | G5-PI |
| G150ML60TE-E2 | 600 | 150 | 1.7 | 14.00 | 0.21 | E2 |
| G200ML65TE-G7 | 650 | 200 | 1.7 | 19.00 | 0.16 | G7 |
| G300ML65TE-G7 | 650 | 300 | 1.7 | 32.50 | 0.11 | G7 |
| G150ML65TK-E2 | 650 | 150 | 1.9 | 11.50 | 0.14 | E2 |
| G200ML65TK-G7 | 650 | 200 | 1.9 | 16.40 | 0.12 | G7 |
| G300ML65TK-G7 | 650 | 300 | 1.9 | 25.00 | 0.10 | G7 |
| G300MP65TE-G8 | 650 | 300 | 1.7 | 32.6 | 0.146 | G8 |
| G400MP65TE-G8 | 650 | 400 | 1.7 | 38 | 0.12 | G8 |
| G300MP65TE-G8 | 650 | 500 | 1.7 | 32.6 | 0.146 | G8 |
| G400MP65TE-G8 | 650 | 600 | 1.7 | 38 | 0.12 | G8 |
